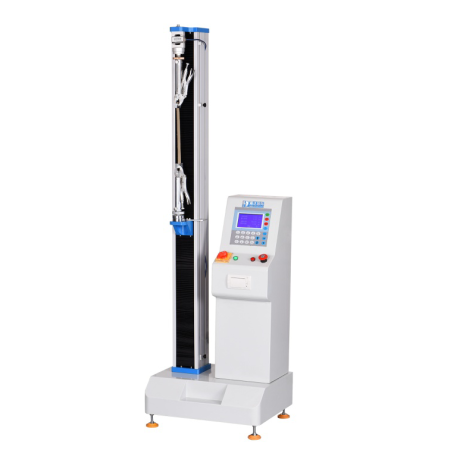

Tensile Testing Equipment Series HD-617

Tensile Testing Equipment Series HD-617

Minimum
1 SET
Delivery
15 days after order.
Model
HD-617
Country
China
BrandName
HD
Package
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment
L/C, D/P, T/T
Price
FOB, CIF

Tensile Testing Equipment

1. Product Description:
Tensile Testing Equipment are widely used to test tension, tear strength. Peeling force, compression, shearing force, adhesion, three-point bending...etc. in the field of metal, rubber, plastic, nylon, leather, shoe making, fabric, insulator, electric appliance.

2. Design Standard:
GB/T 16491, GB/T 1040, GB/T 8808, GB/T 13022, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 16825, GB/T 17200, GB/T 3923.1, GB/T 528, GB/T 2611, GB/T 6344, GB/T 20310, GB/T 3690, GB/T 4944, GB/T 3686, GB/T 529, GB/T 6344, GB/T 10654, HG/T 2580, JC/T 777, QB/T 2171, HG/T 2538, CNS 11888, JIS K6854, PSTC-7, ISO 37, AS 1180.2, BS EN 1979, BS EN ISO 1421, BS EN ISO 1798, BS EN ISO 9163, DIN EN ISO 1798, GOST 18299, DIN 53357, ISO 2285, ISO 34-1, ISO 34-2, BS 903, BS 5131, DIN EN 12803, DIN EN 12995, DIN53507-A, DIN53339, ASTM D3574, ASTM D6644, ASTM D5035, ASTM D2061, ASTM D1445, ASTM D2290, ASTM D412, ASTM D3759/D3759M

3. Main parameter:

Item

Description

Max. Force

500kg (5KN)

Load cell

Germany brand load cell for high accuracy

Control system

LCD / PC with windows 7 system

Motor

Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Stoke

1400mm including fixture

Load cell Resolution

1/250,000

Load Precision

within ±0.5%

Test speed

0.01~500mm/min (adjustable)

Software

TM 2101

Curves display

Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display

Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc

Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat


4. Theory
Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check  tensile strength and convert the strength into voltage sign and output to the display screen.And the strength value will be displayed automatically on the computer.

5. Features
1). Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2). Using a single-screen operation; do not need to switch the screen;
3). With three languages in Simplified Chinese, Traditional Chinese and English, the software interface
can be switched easily
4). The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;
5). Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6). With a variety of measurement units, Measure In Imperial & Metric are switchable;
7). With self-return & auto-correction function;
8). With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9). With the user-defined Test methods; with experimental data analysis function;
10). High quality, accurate and reliable models with reasonable price.

6.Software
The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for  tension, compress, bend, shear, tearing and peel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force, maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multisensor support, image interface, flexible data process and powerful system function.

Tensile Testing Equipment views:



see more it video
