Programmable Thermal Shock Chamber (Three Zone System)
Thermal Shock Test Chamber Video
Thermal Shock Test chamber Brochure

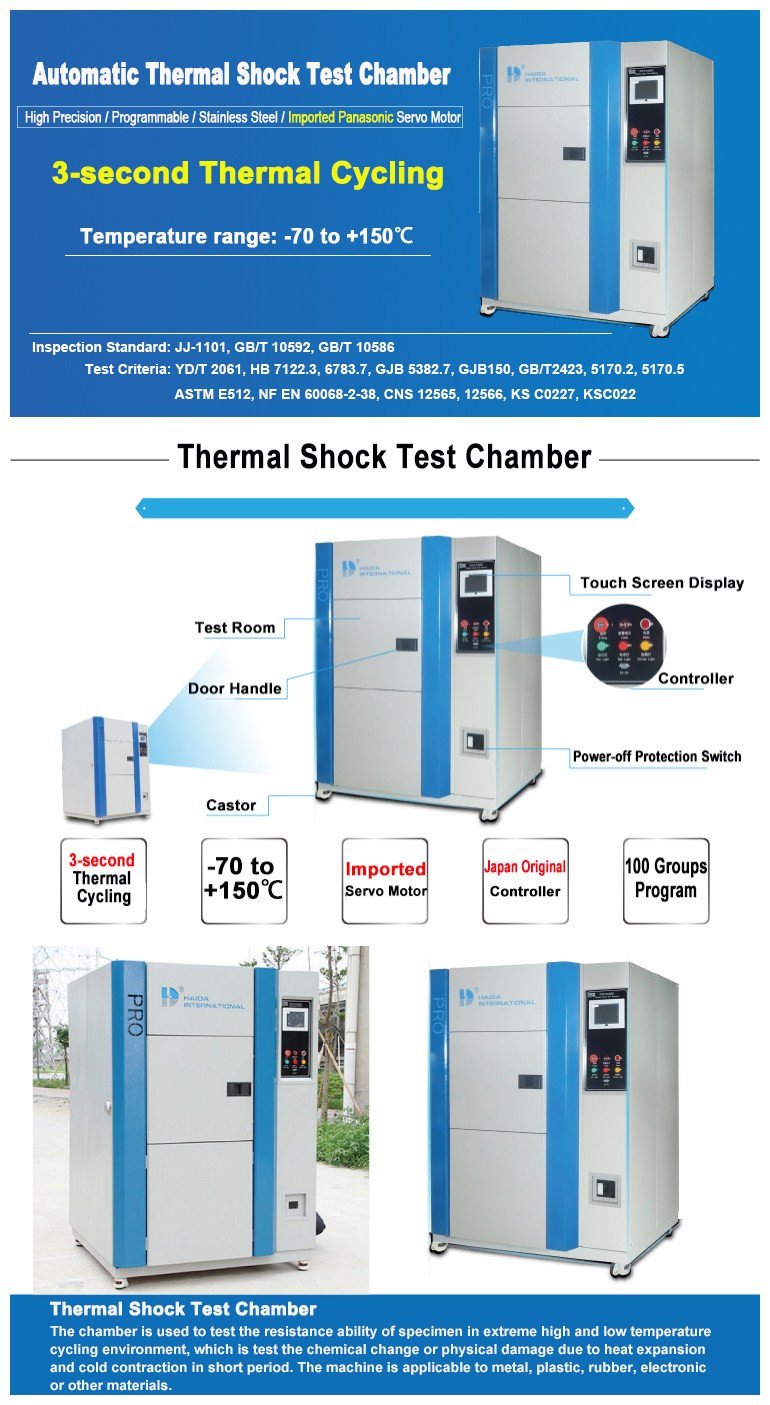

Thermal Shock Test Chamber Introduction:
Hot and cold impact chamber can be repeated quickly and autonomously to the pattern in the cold and hot environment between the hot and cold cycle test. Equipment can quickly and accurately create a hot and cold environment with -40~175°c temperatures ranges.
Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.
The thermal shock chamber is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality.
Features:
1. Perfect appearance and easy to operate.
2. Imported LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
3. Two chamber structures, high temperature chamber and low temperature chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
6. Cold and hot shock temperature recover within1 minute, which complies with MTL, IEC, JIS, GJB and other international standards.
Model parameters:
| Model | HD-E703-50L | HD-E703-100L | HD-E703-200L | HD-E703-300L |
| Internal dimension | 350*350*400mm | 500*450*450mm | 650*670*450mm | 800*820*450mm |
| External dimension | 1230*1270*1830mm | 1380*1370*1980mm | 1530*1590*1980mm | 1680*1735*1980mm |
| Temperature range |
|
| Test Method | Pneumatic Operated Door Switch(two/three-zone) |
| High Temp Chamber Preheating Range | Ambient+10℃~200℃ |
| Heating Speed | ≤35min |
| Low Temp Chamber Precooling Range |
|
| Cooling Speed | ≤50min |
| Temp Tolerance | ±2℃ |
| Thermal Recovery Time | Three zone model≤5 minutes,recovery time is 5 minutes;Two zone model:7-35 second,recovery time is 5 minutes |
| Internal Material | Stainless Steel 304 |
| External Material | Stainless Steel/Spray Paint |
| Cooling Method | Mechanical Compression Binary Cascade Refrigeration |
| Refrigeration Compressor | Semi-closed Piston |
| Refrigerator | Hermertically Sealed France Tecumseh Compressor or Semi-hermetic BOCK Compressor |
| Operation Panel | Programmable LCD Touch Screen |
Available model with capacity: 50L, 200L, 300L; and can be customized.
High temperature chamber:
1, Including three parts: heater, draught fan and air duct valve
2, Draught fan cyclically stirs hot air through heater
Low temperature chamber:
1, Including four parts: evaporator, energy storage piece, draught fan and air duct valve
2, Draught fan cyclically stirs cold air through evaporator and energy storage piece.
3, The basket with testing product drive to low temperature range when doing low temperature impact test.
Refrigerating device:
3. Cooling system: complex overlapping efficient cryogenic loop system
4. Compressor: Bock compressor
5. Refrigerant: environmental protection refrigerant R23/R404A
6. Condensation: Stainless steel welded plate heat exchanger
Controller:
1. Operate interface: 6" color PLC controller, touch screen
2. Program memory capacity: 100 groups (modify by operator)
3. Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 9999cycles
4. Resolution: temperature: 0.01 ℃
5. Input: T thermocouple
7. Control method: PID auto calculation control
Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
