Rubber Temperature Humidity Test Chamber

Rubber Temperature Humidity Test Chamber

Minimum
1 SET
Delivery
15 days after order.
Model
HD-E702-100-4
Country
China
BrandName
HD
Package
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment
L/C, D/P, T/T
Price
FOB, CIF

Rubber Temperature Humidity Test Chamber


Applications

Rubber Temperature Humidity Test Chamber main to simulate test environment with different temperature and humidity for the plastic and rubber materials. And temperature & Humidity Test chamber do the Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

The Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation.Uncover test unit weakness in a short-term test with accelerated time effect.



Standard Features

Item

Specification

Internal dimension(W*D*H)

400*500*500mm

External dimension(W*D*H)

600*1080*1380mm

Temperature range

-40~+150℃

Temperature Accuracy

±1℃

Humidity range

20~98%R.H. (Refer Image below)

Humidity accuracy

±3%R.H

Cooling speed

1℃/min in average (without loading)

Heating speed

3℃/min in average (without loading)

Internal chamber material

SUS#304 stainless steel, mirror finished

External chamber material

Stainless steel with paint spray

Cooling method

Air cooling

Controller

LCD touch screen, programmable control temperature and humidity can set different parameter for cyclic test

Insulation material

50mm high density rigid Polyurethane foam

Heater

Explosion-proof type SUS#304 stainless steel fins radiator pipe heater

Compressor

France Tecumseh compressor

Lighting

Heat resistance

Temperature sensor

PT-100 dry and wet bulb sensor

Observation window

Tempered glass

Testing hole

Diameter 50mm, for cable routing

Sample tray

SUS#304 stainless steel, 2pcs

Safety protection device

Protection for leakage/Over-temperature/Compressor overvoltage and overload/Heater short circuit/Water shortage



Rubber and Plastic Temperature Humidity Test Chamber


undefined

Chamber Features

Chamber Design Features

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain


Programmable Controller

1. PIC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output

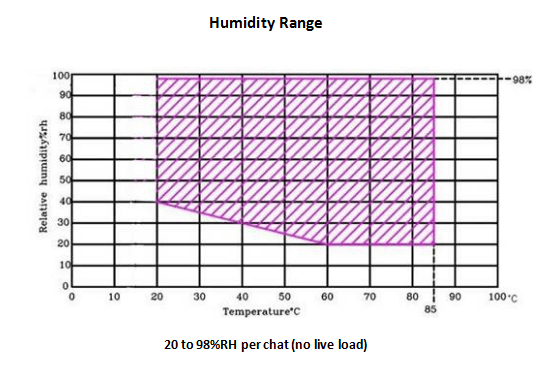

Temp.& Humidity Range:
