Professional Walk-in Temperature Humidity Testing Room
Walk in test chamber video
Walk in test chamber pdf
Product Description:
Walk-in Temperature Humidity Testing Room are environmentally conditioned rooms that may be configured to almost any size or footprint. We also called Environmental Chambers. Walk-in chambers are useful when testing large objects and performing batch testing. Of all environmental test chambers, Walk-in chambers are typically the largest in size.
Product performance & features:
1. Temperature humidity test room has a big temperature / humidity range and can meet user's entire requirement. It adapts to unique balance thermoregulation & humidifying way and can get a safety, precise temperature humidity environment. It has stability, balance heating, humidifying function and also can proceed in high precision, high stability temperature humidity control.
2. Temperature humidity test room is equipped with high precision intelligentized thermoregulator, temperature and humidity adapt LCD display control 7551 program instrument ( it also can use OYO-5461 according to user requirement), can choose the temperature humidity recode instrument.
3. Temperature humidity test room can choose computer for remote control according to the function

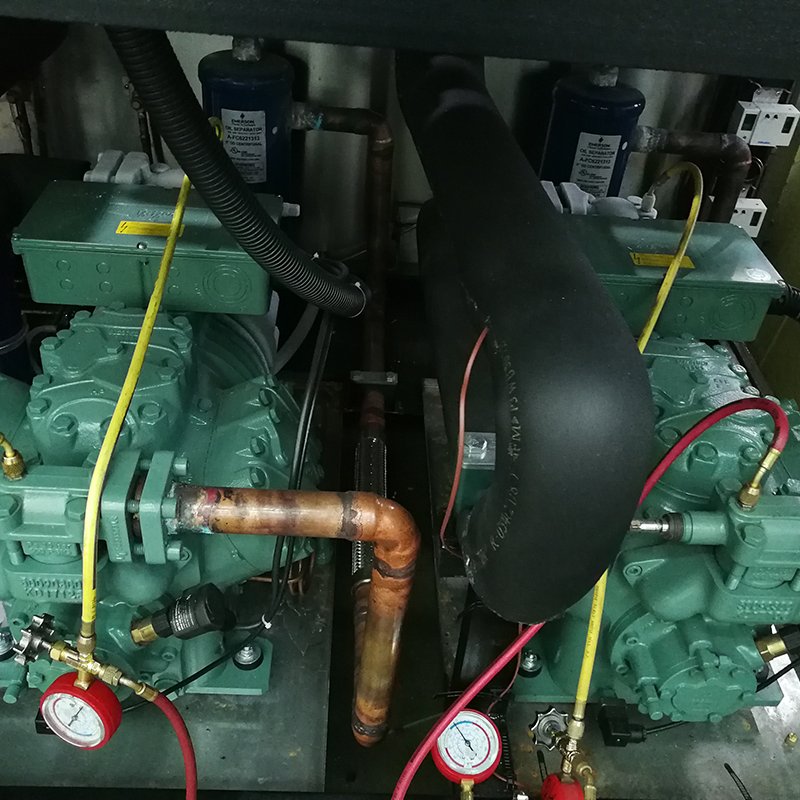

4. Automatic select the refrigerating circuit, the automatic control instrument can automatic choose operate refrigerating circuit's function according to the temperature set value, and direct-on line starting refrigerating machine in high temperature condition which can cooling directly.
5. The interior door is equipped with big observation window which convenient for viewing the test status of specimen.
6. This product is equipped with advanced safety protection device --- residual current device; overheat protector, phase failure protector, water-break protector.
Temperature measuring and control system
1.The temperature measuring and control system adopts microprocessor system and provided with touch panel for monitoring and digital display:
supplied with support software
software is capable to visualize and graphical anallyse the measured & recorded value.
a.graphical representation and digital display and control of set and actual values
b.digital input and display of temperature in degree centigrade
c.fault diagnosis system
d.120 stroage of programmes
2.have adjustable safety cut-out against high and low temperature
3.facility to programme temperature measuring using sensor pt100
ISTA Test Condition
Specification | HD-E705 |
Temperature Range | -50c To +100c (can be customized) |
Humidity Range | 40% To 98% Rh (can be customized) |
Dimension (Internal) (w x d x h) | 1500 x 1500 x 3000 Mm |
Dimension (External) (w x d x h) | 2850 x 1700 x 3200 Mm |
Ramp | Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
Accuracy | Temp. ±1c, Humidity ±2.5%Rh |
Interior Walls | Stainless Steel 304 |
Exterior Walls | Cold Rolled Stell Plate With Baking Finish |
Temperature & Humidity Measurement And Controller | 32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller |
Viewing Window | Multi Pane Glass Window Size |
Port Holes | 50 Mm Diameter For Wire Routing |
Power Supply Requirement | Three Phase, Ac380 v ± 10 %, 50 Hz |
Sound Pressure Level | <72db (a) |
Condenser Cooling | Water Cooled |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Walk In Temperature Humidity Test Chamber Images
Humidity Range
What is the price of the environmental chamber?
Haida can provide environmental boxes of different sizes and materials, and customers can also customize according to their own needs. If you want to know the detailed price, please feel free to contact us.
What kind of repair and services Haida can provide?
The entire Haida team is focused on providing the best customer service in the industry. Our customer support team includes technicians and engineers who can help to diagnose and troubleshoot your issues. Haida offer assistance during installation, service, calibration, and repair of test chambers and also provide on-site installation and maintenance services according to the actual needs of users.
What is the temperature and humidity range of environmental test chamber?
The temperature and humidity range that Haida provides for conventional environmental chambers is -40°C~150°C and 20%~98%R.H (relative humidity). Customers can also customize according to actual needs.
What is the size of the environmental test chamber?
Haida has different sizes of environmental chambers for customers to choose: 100L, 150L, 200L, 225L, 408L, 800L, 1000L, there is a walk-in room for large items testing, customers can also customize the size.
