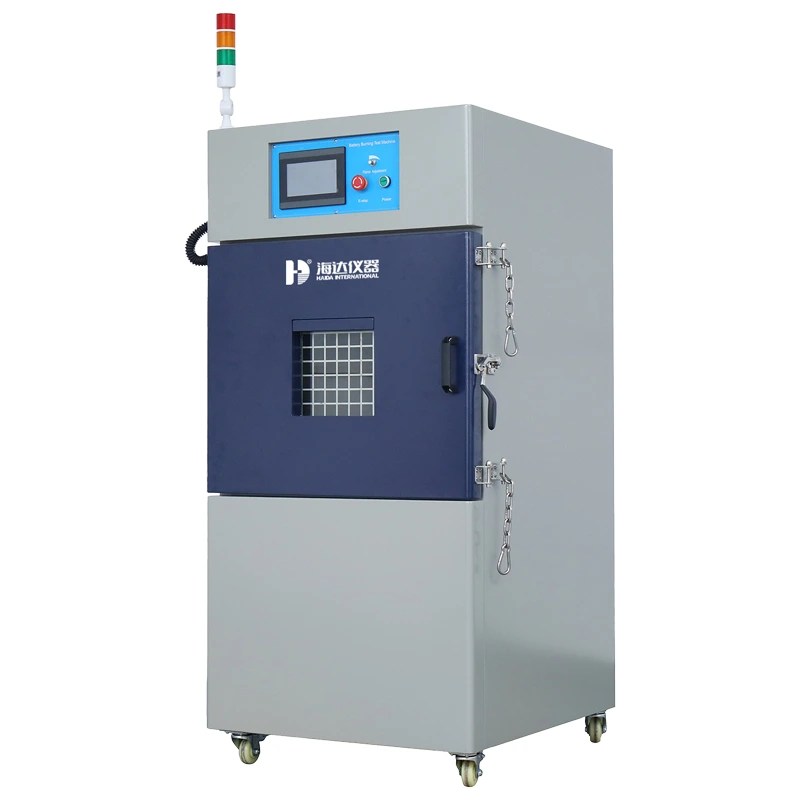

Battery Fire Test Chamber 1
Battery Fire Test Chamber 1

Battery Fire Test Chamber

Battery Fire Test Chamber suit for lithium battery (or battery pack) flame resistance test.

    oops...!

    no product data.

    Go to homepage

    Product Description

    Battery Fire Test Chamber suit for lithium battery (or battery pack) flame resistance test. Drill a circular hole with a diameter of 102mm on an experimental platform, place a wire mesh on the round hole, place the battery on the wire mesh screen, install an octagonal aluminum mesh around the sample, and then ignite the burner heats the sample until the battery explodes or the battery burns, and the combustion process is timed.


    Test Standard


    UL 1642:2012; UL 2054:2012; IEC 62281:2004; UN 38.3

    Battery Fire Test Chamber (2)

    Product Specifications

    Model HD-H209
    Control method button control;
    Burner Bunsen burner, the inner diameter of the tube mouth is 10mm, and the length is about 100mm;
    Flame application time 0~99H99M, can be set;
    Diameter of test hole 100±2mm;
    Test sieve a sieve made of stainless steel wire woven with a diameter of 0.43mm (0.017inch), containing 20 meshes per inch;
    The height of the flame from the screen 38mm;
    Octagonal mesh cover the distance between each pair of faces is 24" (that is, 610mm), and the eight faces are movable, which is convenient for replacement and disassembly;
    The height of the octagonal net cover 12" (that is, 305mm);
    Octagonal cover material aluminum mesh, composed of 0.25mm diameter aluminum wire woven into a mesh containing 16-18 meshes per inch.
    Material of battery mesh stainless steel mesh;
    Combustion gas methane or liquefied petroleum gas (customer-provided);
    Inner box size 750x750x500mm (width x depth x height);
    Dimensions 1000x950x1310mm (width x depth x height, including door lock);
    Pressure relief door size 200x200mm;
    Smoke exhaust pipe diameter φ100mm, located at the back of the box;
    Box door a single door opens to the left, and an explosion-proof chain is installed on the side of the box door;
    Power supply 1∮, 220V, 50/60Hz, 200W
    Equipment weight about 160kg
