IEC 60335-2-84 Toilet Seat Endurance Test machine

IEC 60335-2-84 Toilet Seat Endurance Test machine design mainly focuses on two types of designs for the cover plate: fatigue and strength tests. Under the set force value, stroke, displacement, time and speed conditions, repeated tests are conducted on the product to evaluate and inspect the product quality issues.

Model:

5063-HD

Inquiry

Write a Review

Product Description

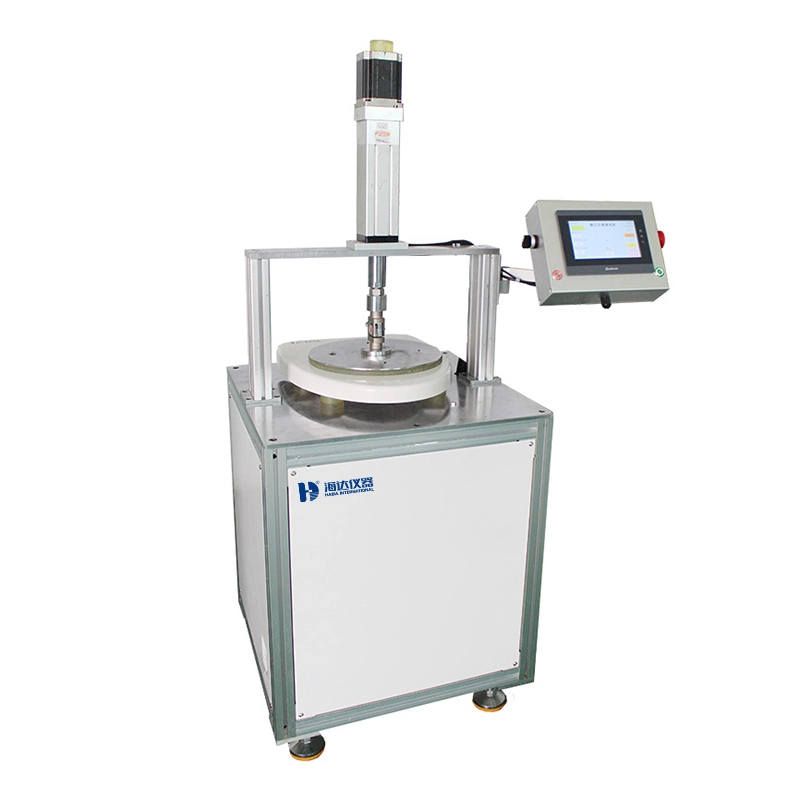

This machine is mainly designed with a combination of cylinders, force value sensors, guide rods, PLC software, touch screen control, magnetic fixture blocks, A3 steel plates, stainless steel materials, etc. It is a professional device for toilet testing and fatigue and strength detection.

Test standards: IEC 60335-2-84:2019；GB/T 4706.53-2024

IEC 60335-2-84 Toilet Seat Endurance Test machine

Product Specifications

Model	5063-HD
Test Stations	2 stations (independent operation, no interference)
Functional Modes	Group A: Lid load fatigue test, Seat ring load life test
Functional Modes	Group B: Seat ring strength & Lid strength test
Test Stroke	0-500mm (PLC programmable)
Test Force	0-4000N (PLC programmable)
Force Accuracy	0.001 grade
Sampling Rate	1/250,000
Test speed	0-500mm/min (PLc programmable)
Control Method	PLC software + touchscreen operation
Motion Method	Pneumatic control (up/down movement)
Test Duration	0-99H99M99S (PLC programmable)
Delay Function	0.1-9.95 settable
Cycle count	0-9,999,999 Cycles (PLC programmable)
Sample Size	720x420x800mm(LxWxH)
Pressure Plate Config	①300mm: 5mm steel + 10mm rubber ②76mm mubber disc (19mm thick, Shore hardness 70°)
Power supply	220V/50Hz
Equipment Weight	300kg
Dimensions	1200x800x1630mm
