led IPX7 8 Water Immersion Test Chamber 1
led IPX7 8 Water Immersion Test Chamber 1

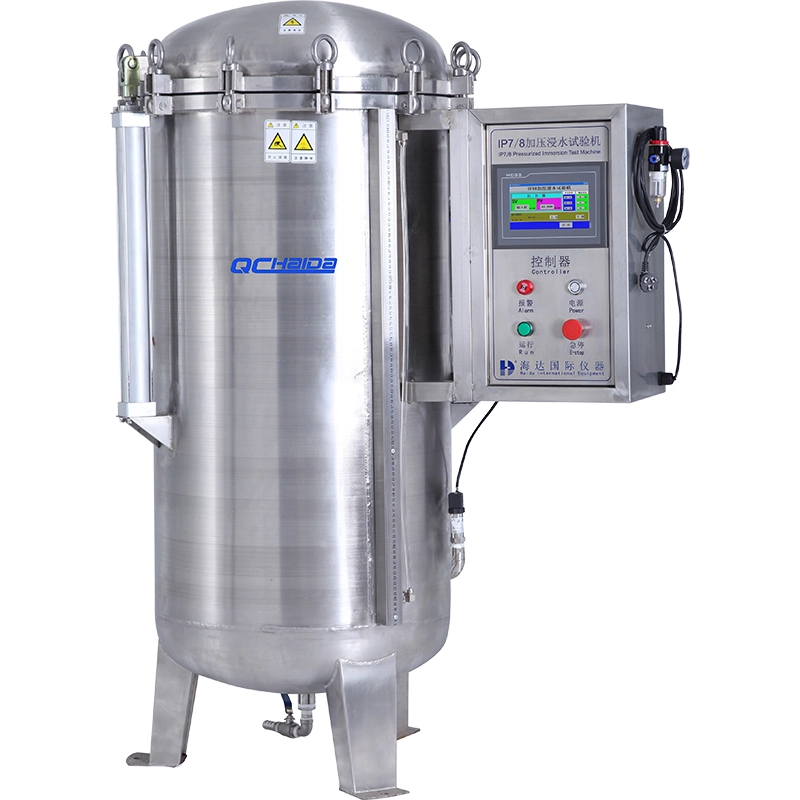

led IPX7 8 Water Immersion Test Chamber

The immersion test chamber is designed to test the IP waterproof ratings of enclosures for outdoor lighting, household appliances, communication products, signaling devices, automotive lamps, and other products. It also supports IPX7 and IPX8 immersion and submersion tests.

Test water pressure: 0 ~ 0.5 MPa (adjustable and customizable)

Applicable Standards: GB 4208, DIN 40050-9, IEC 60529, ISO 20653.

5.0
Model:
HD-E710-4
design customization

    oops...!

    no product data.

    Go to homepage

    Product Description

    HAIDA Equipment Immersion Test Chamber is designed to test the IP waterproof protection ratings of enclosures for outdoor lighting, exterior lamps, household appliances, communication products, signaling devices, automotive lamps, and other products. It supports IPX7 and IPX8 immersion and submersion tests.


    • Equipped with a PLC-based intelligent control system for simple and convenient operation.
    • Features an air compressor and a digital pressure gauge for clear, easy-to-read pressure readings.
    • Safety features include power overload protection, short-circuit protection, grounding protection, low-water protection, an emergency stop, and a fault alarm system.
    led IPX7 8 Water Immersion Test Chamber

    Product Specifications

    Model HD-E710-4
    Internal dimension Diameter 600 * height 1000mm
    External dimension Diameter 820 * height 1200mm
    Chamber material SUS#304, thickness 2mm
    Water depth Simulate 50m depth by air compressor
    Water pressure Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree
    Timer 0 ~ 99min, 99sec
    Sample lift device Portable stainless steel basket
    Water level display Water pipe with scale
    Protection device Pressure protection and anti-explosive device, water drain and pressure release device
    Safety protection Power overload protection, short circuit protection, grounding protection, alarm display
    Power supply source three-phase, 380V±10%, 50/60Hz (can be appointed)
