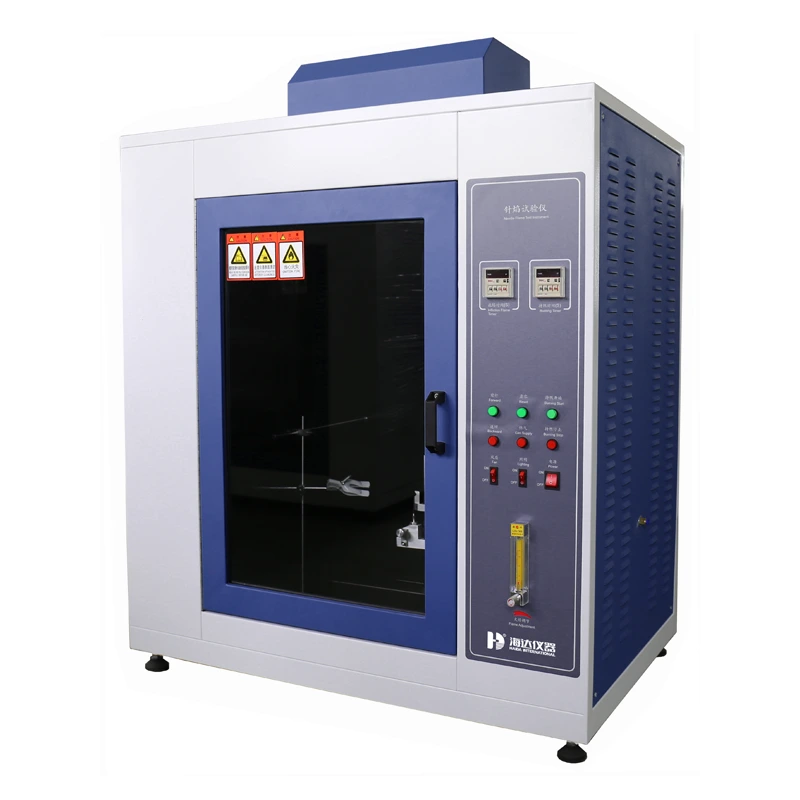

Needle Flame Testing Instrument

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, component overheating, poor contacts) to assess fire hazards.

Model:

6011-HD

Inquiry

Write a Review

Product Description

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, component overheating, poor contacts) to assess fire hazards.

Needle Flame Testing Instrument is specifically designed for evaluating fire risks in small components where glow-wire or horizontal/vertical flame tests are unsuitable. If a sample ignites during glow-wire testing, the needle flame test further analyzes combustion risks. Applicable to parts of electrical/electronic products and household appliances, such as terminal blocks, centrifugal switches, and rice cooker sockets.

This model features PLC + color LCD touchscreen control with an intuitive interface and includes a built-in printer for recording test conditions and results.

Product Specifications

Model	6011-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with test data printer
Display System	7-inch color LCD touchscreen for setting/displaying burn time, test duration, test date, print interface, and operational status
Chamber Volume	≥0.5 m³, with glass observation door
Internal Illuminance	<20 Lux
Fuel	Butane gas (≥95% purity); no air ingress into burner tube
Burner Specifications	Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm
Flame Height	Adjustable: 12mm±1mm (includes measuring gauge)
Flame Temperature	100°C±5°C to 700°C±3°C in 23.5±1 seconds (optional temperature calibration device available).
Timer	Adjustable range: 0–999.9 seconds; Configurable ignition/duration recording.
Drive Mechanism	Motorized
Key Features	Automated operation: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and stable performance.
Power Supply	AC 220V, 50Hz.
