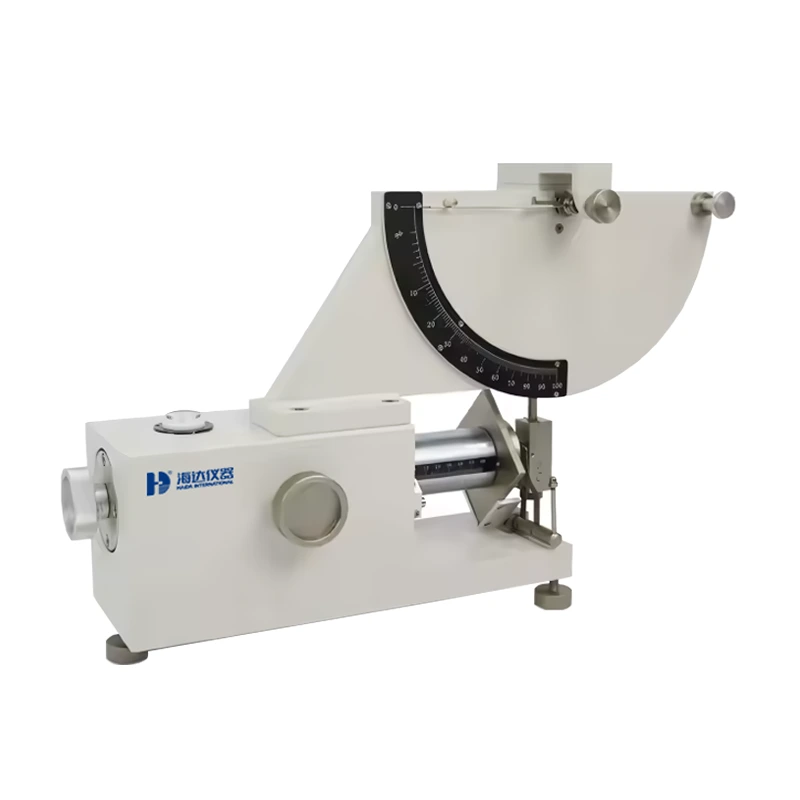

Pendulum Rubber Rebound Resilience Tester

Model:

HD-R801-1

Inquiry

Write a Review

Product Description

Pendulum Rubber Rebound Resilience Tester is designed to determine the rebound resilience of rubber, flexible cellular materials, thermoplastics, elastomers, soft elastic foams subjected to impact by a pendulum from a specified height, to obtain the optimum applicability, the quality differentiation of various materials, and changes of characteristics after the aging test, etc. The rebound resistance test is an effective method to get quality assurance during the rubber production process or on the finished products.

Test standard

DIN 53512, ISO 4662, Adidas CE-12, DIN53573, ASTM D 1054, etc.

Pendulum Rubber Rebound Resilience Tester

Product Specifications

Model	HD-R801-1
Impact Energy	0.5 J, 0.2 J
Range of Display	2592*1944 (5 million pixel CCD digital camera)
Impact Angle	90 degree
Length of Pendulum	200 mm
Impact Speed	1.4 ~ 2.04 m / sec
Specimen Thickness Range	0~60 mm
Moving Axis Mini. Scale	AC 220V/50Hz, 2A
Elastic Material Test Striker	Impact energy: 0.5 J
Elastic Material Test Striker	Hemisphere dia.: 15 mm
Foam Material Test Striker	Impact energy: 0.2 J
	Shape A Hemisphere dia.: 30 mm
	Shape B cylinder dia.: 40 mm, and round end radius: 40 mm
Dimension	62 × 12 × 33 cm
Weight	38 kg

Products Advantages

Pendulum Rubber Rebound Resilience Tester 3

Best Quality

We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.

Pendulum Rubber Rebound Resilience Tester 4

Reasonable Prices

We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.

Pendulum Rubber Rebound Resilience Tester 5

QC Team

We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.

High-End Look

When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

Product Characteristics

Test Principle

A test piece with the plane and parallel surfaces clamped into the rebound resilience testing machine is impacted on one surface by a pendulum with a spherical end from a defined height. The rebound resilience is evaluated by measuring the energy of the impacting mass immediately before and after impact. a spherical end from a defined height. The rebound resilience is evaluated by measuring the energy of the impacting mass immediately before and after impact.

Fast and accurate: test can be completed in 10-160S

This machine is applicable to specimens, whose hardness range is from 30 IRHD to 85 IRHD. Equipped with devices for elastic materials and foaming materials to meet different testing requirements.

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

It adopts an arc dial display with 100 equal parts, owning higher accuracy relative to vertical scale.

It can display the maximum rebound value and reset the pointer manually after the test is completed.

The clamping thickness of the test piece is adjustable within the range, which is capable of clamping materials in different thicknesses.

The Simple structure facilitates easy operation and convenient maintenance.

Product Details

Nothing says class, sophistication, and smooth comfort quite like velvet, It combines thick cushioning with tufted velvet, sleek arms, tapered wooden legs, and a vintage look that takes you back to the 1950s.

Upholstery Material

With a variety of colors to match your décor, this sofa can fit perfectly with a contemporary look or more rustic-looking living space.

Reversible Cushions

The split-back design seating can be independently lowered into a lounging position so you can sit up to watch your favorite movie.

Leg Material Details

Sofa comes with soft padding under all four feet to make it easy to move around and ensure your floors are never scuffed or scratched.

MATERIAL INTRODUCTION

Cozy Space With Blue Sofa

This armchair brings a boxy silhouette to your living space. It's crafted with a kiln-driedengineered wood frame and sits on engineered wood legs in a light brown finish. This chair is wrapped in 100% polyester, foam-filled upholstery in a solid hue. It features square arms and a high, tufted back for a tailored touch. Flared legs offer a mid-century modern feel, complementing modern and contemporary decor styles alike. To care for this accent chair, simply wipe it with a damp washcloth and a bit of dishwashing soap.

Product Application

Sensationally stunning and exquisitely engineered, our seating options, whether guestroom seating, breakfast area seating or lobby seating are perfectly crafted to be admired from all angles. All of our seating products offer sophisticated comfort and support, delivering a perfect perch for your hotel guests.
