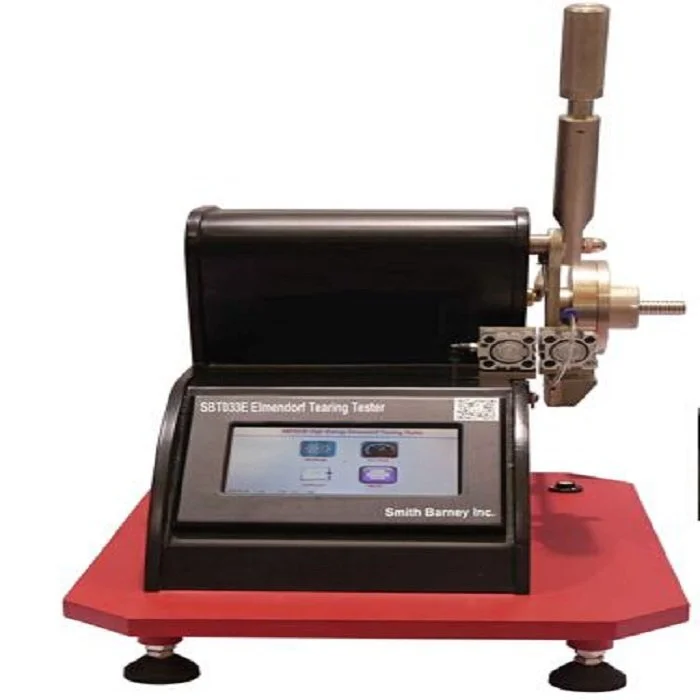

Textile Elmendorf Tearing Test Equipment
Textile Elmendorf Tearing Test Equipment
Textile Elmendorf Tearing Test Equipment Application
Textile Elmendorf Tearing Test Equipment to determine the ballistic tearing strength of woven fabrics, plastic films, paper, or other similar materials.
Standards
Textile: ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17
Plastics: ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141
Nonwovens: ASTM D5734, WSP 100.1
Paper: APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,ISO 1974
Textile Elmendorf Tearing Test Equipment Features

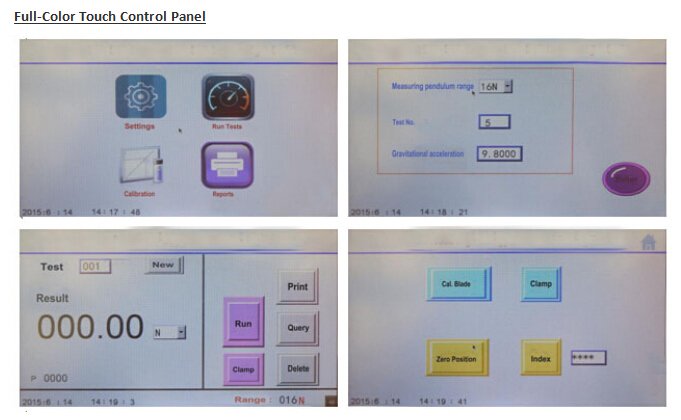

1. Easy operation via the integrated 7” full-color digital touch-screen.
2. Pneumatic operated clamping and pendulum release ensures repeatable test result.
3. Pendulum automatically returns to initial position.
4. The built-in microcomputer handles all calculations and set-up functions.
5. Easily interchangeable pendulums.
6. Selectable units: newtons, grams-force, millinewtons, lbs-force, percentage of pendulum capacity.
7. Augmenting weights are available to increase capacity to 320N.
8. Easy to calibrate using the check weights (optional).
9. PC & PRINTER connection.
10. Cutting template supplied for preparing samples.
11. Supplied with calibration & inspection certificates.
Textile Elmendorf Tearing Test Equipment Technical parameters:
Measuring pendulum range | 16 - 32 - 64 - 128N,320N(optional) |
Unit of measurement | N , gf , lbf |
Tearing Distance | 43 ± 0.15m |
Slit Size | 20 ± 0.2 mm |
Angular resolution | high resolution digital optical encoder |
Blade | tungsten steel |
Data port | RS232 port for printer connection and 3 pin Mini-DIN connector for PC. |
Statistics | Force min. max. mean, CV%, St. Deviation, Range% |
Language | English |
Template Size | As per ASTM standard |
Dimensions | 650 x 450 x 660 mm |
Power supply | 110V, 60Hz |
Air requirements | 600-800kPa |
Weight | 75 g |
Textile Elmendorf Tearing Test Equipment Accessories:
1. Main Unit:01 No.
3. Augmenting weight for 64N:01 No.
5. Spare Cutting Blade: 01 No.
6. Specimen cutting template: 01 No.
7. USB software:01 No.
8. Power Cord: 01 No.
10. This User’s Manual: 01 No.
11. Inspection & Conformance Certificate: 01 No.

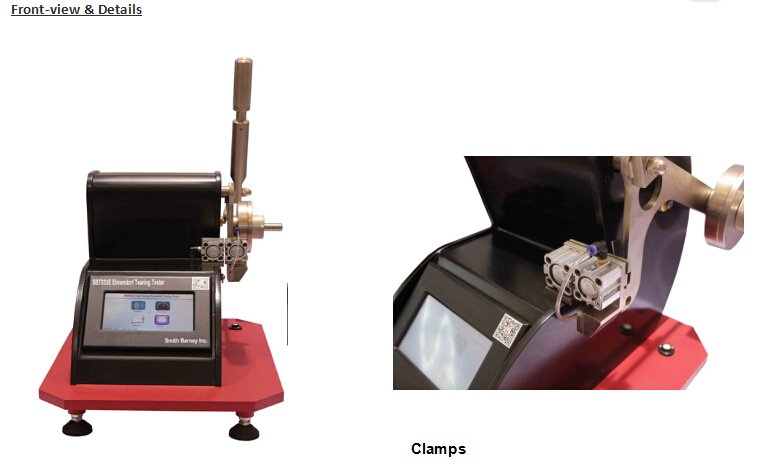

Textile Elmendorf Tearing Test Equipment view:
