    Specifications

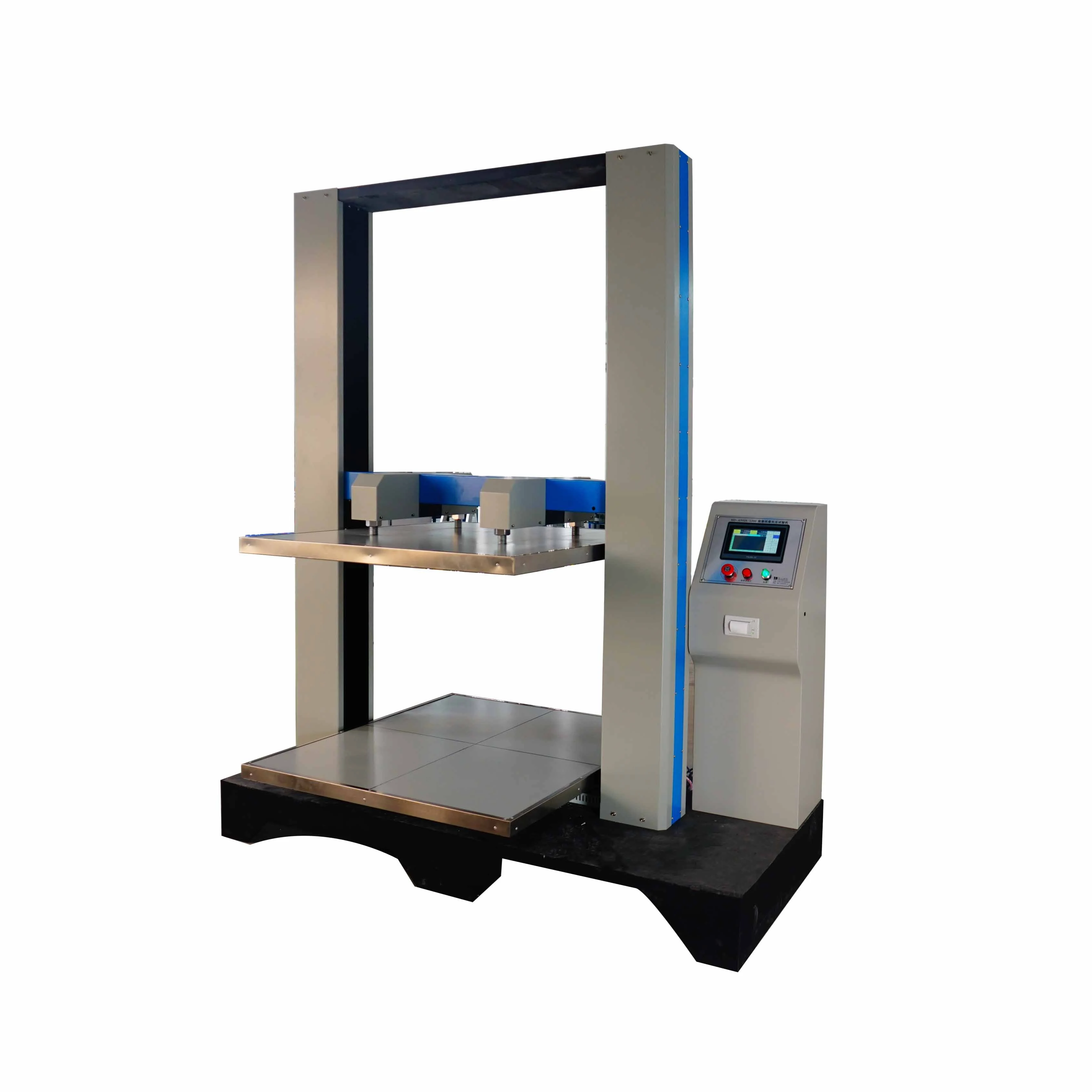

     Compressive Strength Tester

    1.Motor:Import servo motor
    2.Control system:Computer control




     1. The Application:

    Compressive Strength Tester used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry.





    2.Specifications


    Compressive Strength Tester

    Model

    HD-A502S-1500

    Capacity (optional)

    5T

    Unit (switchable)

    Kg, Lb, N

    Load Resolution

    1/250,000

    Load Accuracy

     ≤0.5%

    Test Space (L×W×H)

    1300×1500×1200mm

    Speed of Compression

    10 ± 3 mm/min

    Operation Mode

    PC

    Report Items

    Serial number, Peak value, Average value, Designated holding pressure value; all memorable

    Structure

    Panasonic servo Motor (Japan) ; Imported ball screw rod

    Dimension (L×W×H)

    2000×1500×2030mm

    Weight

    Approx. 1340kg

    Power

    1ø, 220v/ 50Hz

    Safety Devices

    Overload protection, overvoltage protection & limited position protection device

    Standard

    TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642





     3.The Features:

    Compressive Strength Tester

     1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
    2. Using a single-screen operation; do not need to switch the screen;
    3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
    4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
    5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
    6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
    7. With self-return & auto-correction function;
    8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
    9. With the user-defined Test methods; with experimental data analysis function;
    10. It can do test of compression, bending, pressure holding & fatigue.
    11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.





    4 The pictures

     Compressive Strength Tester 2



     Compressive Strength Tester 3

    Company Services:

    All Haida employees adhere to the " Quality comes from precision, quality creates the future " business philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand consumers' needs.



    The certification

    ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC



    The introduction of Haida

    Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
