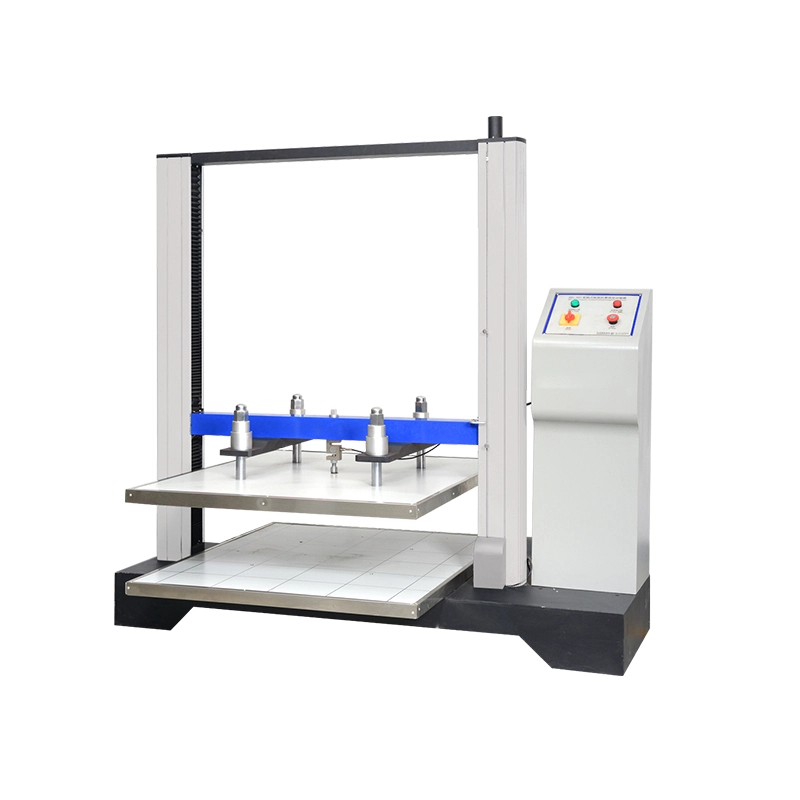

Corrugated Box Tester1
Corrugated Box Tester
Carton Box Tester Video
Carton Box Tester Brochure
The usage:
Corrugated Box Tester is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,
Specifications
Corrugated Box Tester
1.AC frequency conversion motor ( Taiwan)
2.For box compression testing .
3.Carton test
The main technical parameters
Capacity (optional): | 2T |
Unit (switchable): | Kg, Lb, N |
Load Resolution: | 1/10,000 |
Load Accuracy: | ≤0.5% |
Test Space (L×W×H): | 1000×1200×1200 mm |
Speed of Compression: | 10 ± 3 mm/min |
Report Items: | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
Structure: | AC frequency conversion motor ( Taiwan); Ordinary screw rod |
Dimension (L×W×H): | 1795×1000×1820 mm |
Weight : | Approx. 690 kg |
Power: | 220V/ 50Hz |
Safety Devices: | Overload protection, overvoltage protection & limited position protection device |
Standards:
ISO2872, ISO2874 and GB4857.4.
