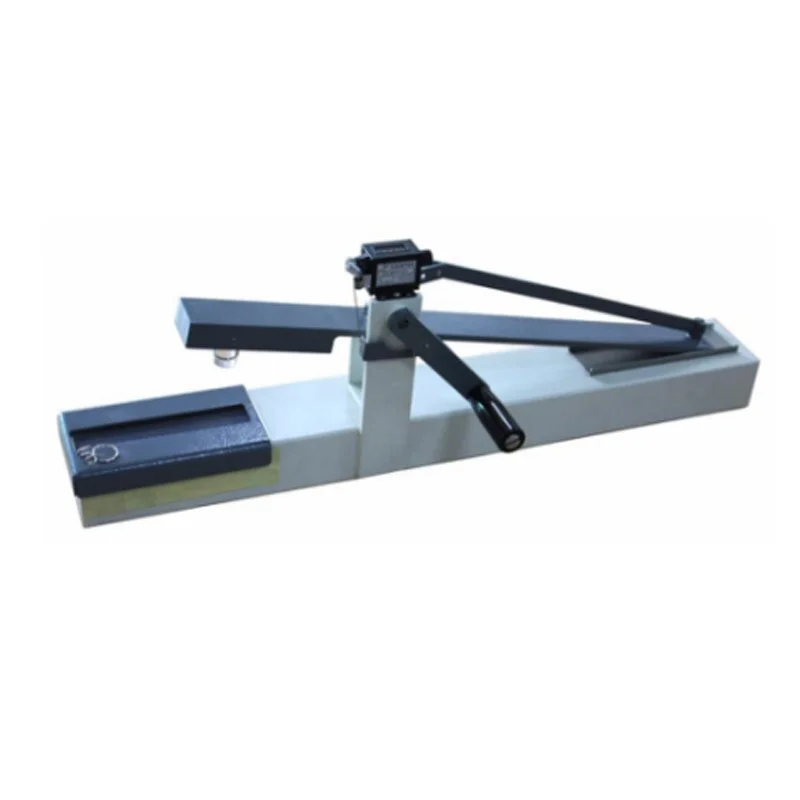

Rubbing Fastness Tester For Textile
Rubbing Fastness Tester For Textile
Products description:
Rubbing Fastness Tester ,also as a kind of textile testing equipment,is used for testing the transference of color from the surface of one material to another by either wet or dry rubbing. Specimens are rubbed with dry, standard cotton cloth (Crocking cloth) and again, it applicable with wet cloth. The staining of the crocking cloths is assessed with a Grey Scale
Usage:
Rubbing Fastness Tester is to determine color fastness of textile to dry or wet rubbing.
Testing standard
AATCC 8 Colorfastness to Crocking: AATCC Crockmeter Method
AATCC 165 Colorfastness to Crocking: Textile Floor Coverings—Crockmeter Method
ISO 105-X12 Textiles -- Tests for colour fastness -- Part X12: Colour fastness to rubbing
BS 2543, BS 3424: Part 14, M&S C08, IKEA IOS-TM-0002, Mercedes Benz DBL 7384
Test procedure
1. A coloured test specimen is clamped and is rubbed,under controlled conditions, against a white crocking cloth.
2. Colour transferred to the crocking cloth is assessed with a suitable Grey Scale.
Products parameter:
Diameter of the Rubbing Finger | 16 ± 0.2 mm |
Force on the Finger | 9 N ± 0.2 N (917.43 gms) |
Size of Crock Square | (5 x 5) cms |
Center to center Traverse of the Finge | 104 ± 3 mm |
Counter (Re-settable) | 0 – 9999, (Least Count : 1) |
Size of Test Specimen | 25 x 5 cm |
Dimensions | 610 x 210 x 300 mm |
Weight | 10 Kg |
Accessories supplied with this instruments
Ø Main Unit: 01 No.
Ø Crocking Cloths (Pack of 200 Nos.):02 Pkts.
Ø S.S Spring Clips (For mounting Crock squares):02 Nos.
Ø Sandpaper:02 Nos.
Ø ‘U’ Shape Specimen Holder: 01 No.
Ø This User’s Manual: 01 No.
Ø Inspection & Conformance Certificate:01 No.
