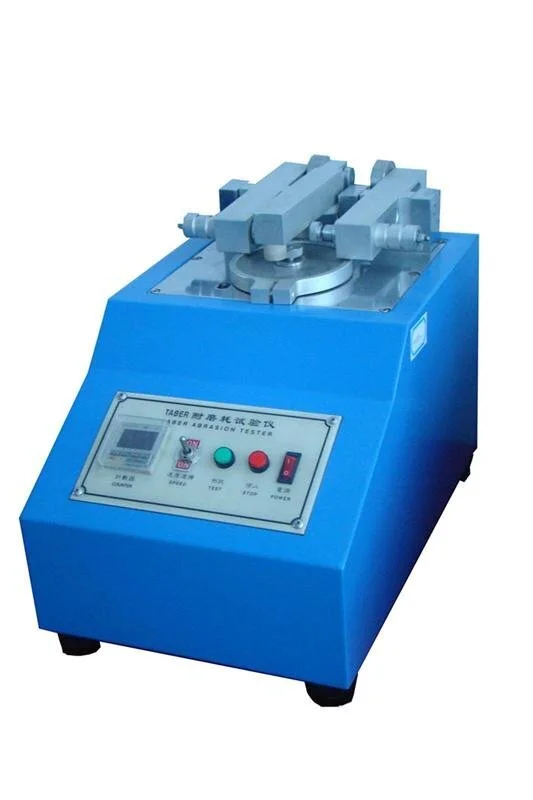

Abrsion Resistance Tester For Automotive Seat Fabric Leather
abrsion resistance tester is used for leather, cloth, coating, paper, floor tile, plywood, glass, natural rubber wear-resistant test.
Specimen Size: | ED:108mm ID:8mm ,3mm |
Abrasion Wheel: | 2"(max.45mm), 1/2"(W) |
Wheel Center Distance: | 63.5mm |
Rotating Speed: | 60/72 rpm |
Load: | 250g, 500g, 750g |
Counter: | LCD Touch screen, 0-999,999 Automatic shutdown |
Wheel and Specimens disk center space: | 37~38mm |
Machine Size: | (L*W*H)530*320*310mm + vacuum cleaner |
Weight: | 18kg (Excluding vacuum cleaner) |
Power: | 1, AC220V/50Hz |
Wear index calculation formula: | Abrasion loss weight/test turnover number×1000 |
Design criteria: | DIN-53754, 53799,53109,52347, TAPPI-T476, ASTM-D1044,D3884, ISO-5470 |
Specimen Size: | ED:108mm ID:8mm ,3mm |
Abrasion Wheel: | 2"(max.45mm), 1/2"(W) |
Wheel Center Distance: | 63.5mm |
Accessories:
- One vacuum cleaner machine
- One H10 wheel
- One box of abrasive papers for recondition the wheel
- Load 250,500 and 1000g
