    Automatic bursting strength tester 3 Burst Test Machine Video               Automatic bursting strength tester 4 Burst Test Machine Brochure


    Introduction:

    Automatic bursting strength tester is the international general Miao Lun (Mullen) instrument, widely used in packaging materials, mainly used for the determination of all the cardboard and the single-layer and multi-layer corrugated cardboard, can also be used for silk, cotton and other non paper materials of bursting strength test. As long as put material, automatic testing, automatic detection, automatic oil return and automatic computation, storage test data, print, instrument with digital display and can automatically print the test results and data processing.



    Parameters:

    Induction: pressure transducer

    Indication: touch screen operation

    Mode of operation: automatic

    Power unit: kPa, psi (Lbs/in^2), kgf/cm^2, with unit switching function

    Bursting range: 250 ~ 5600kpa

    The clamp ring material: stainless steel SUS#304

    The clamp ring, clamping ring diameter: diameter φ 31.5 ± 0.05mm

    Hydraulic oil: Oil

    Compression speed: high pressure of 170 ± 10ml/min

    Accuracy: + 0.5%

    Automatic clamping and releasing device, a sample clamping force: >690kpa

    Can display curve and automatically determine the base paper bursting index etc.

    Size: (L * W * H) 430 x 530 x 525mm

    Weight: 70kg

    Power: 120W

    Power supply: 1, AC220 ± 10%, 50Hz

    Optional: pump 1.

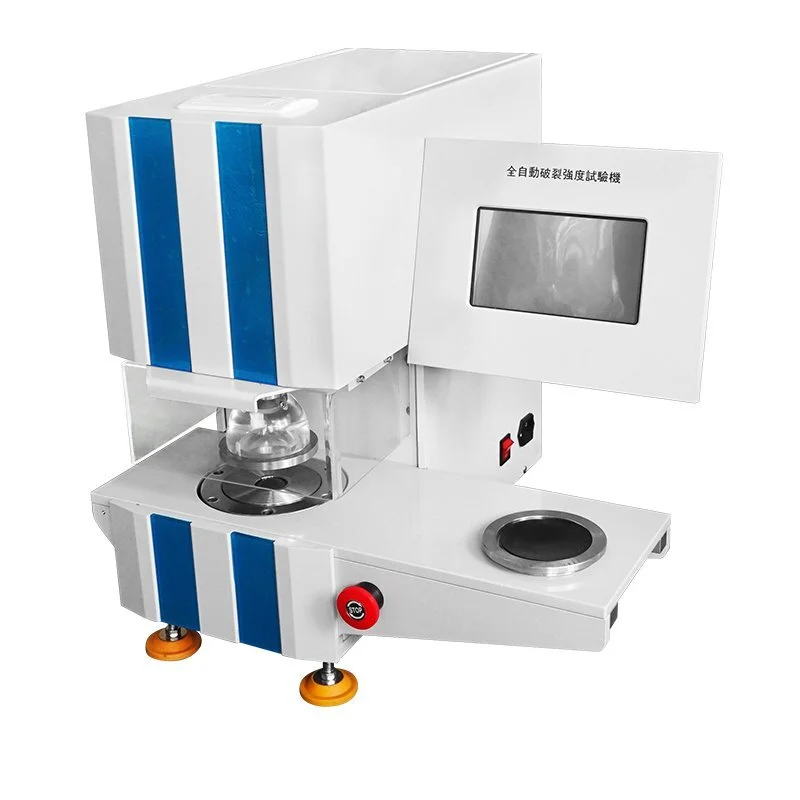

    Automatic bursting strength tester image

    Automatic bursting strength tester


    Why choose us?

    1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

    2. Excellent After sale Service:

    18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

    3. Commitment:

    We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

    4. Good Packaging:

    Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
