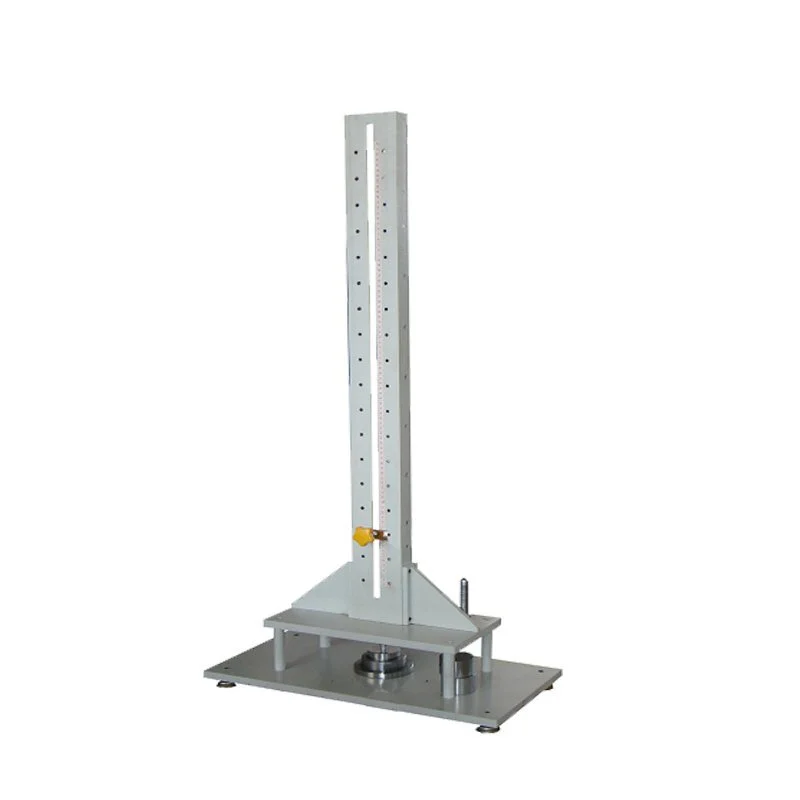

Dupont Impact Test Machine
Dupont Impact Test machine
Usage:Dupont Impact Test machine is used for testing the firm degree ofthe plastic, ceramic, acrylic, glass fiber materials and coating material.
Principle:
Dupont Impact Test machine to be provisioned of the weight of the steel ball, adjust a certain height, dropfeely and attack samples, observe the degree of damage.
Dupont Impact Test machine Design Criteria:
Dupont Impact Test machine meets the design criteria：JIS-K5600(coating)、ASTM-D2794、JIS-K5400 and so on.
Specification
|
Item |
Specification |
|
|
General material |
Coating specimens |
Plasticspecimens |
|
Max height |
50~500mm |
50~1000mm |
|
Balls control method |
Manual setting |
|
|
Impact head radius |
1/2,1/4,3/16,1/8,1/16in,5mm |
7.9mmR(5/16”R) |
|
Impact platform radius |
Plane 1/4,3/16,1/8,1/16in |
8.1mmR, 15mmR |
|
Weight |
300,500,1000g one in each |
1000g、2000g in each |
|
Volume(about) |
50cm×50cm×150cm |
|
