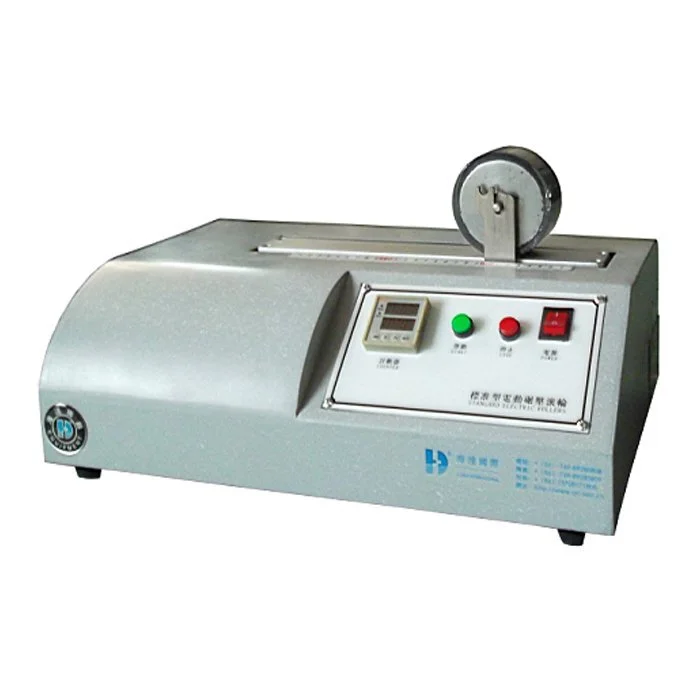

Electric rolling wheel peeling testing machine
Introduction
1、Usage：
Electric rolling wheel peeling testing machine is used for prepare samples of adhesive tapes peeling test, holding power test.
2、Principle：
Electric rolling wheel peeling testing machine with a a constant pressure and speed, let the adhesive tape sample stick on the standard test plate standard and smoothly.
Standards
Electric rolling wheel peeling testing machine standards：GB/T 4851、JIS-C-2107、JIS-Z-0237、GB/T2792、PSTV-8
Machine Instruction
Ⅰ、Machine structure(Chart1)
（chart 1）
1、Roller：weight 2000±50g；
2、Control panel(refer to details)
II、Control panel(chart3)
(chart3)
Instruction：
1、power ：machine power switch； 2、Counter：rolling times
3、Start； 4、Stop
Ⅲ、Electric rolling wheel peeling testing machine specifications(Chart1)
|
Item Specification |
HD-526A |
HD-526B |
HD-526C |
|
Load |
2000±50g |
||
|
Roller Dimension |
￠84mm×45mm |
||
|
Rubber Hardness |
Hs80±5 |
||
|
Rubber Thickness |
300mm/min |
||
|
No. of roller |
1set |
2set |
3set |
|
Power |
1∮，AC220V,50/60Hz, 2A |
1∮，AC220V,50/60Hz, 2A |
1∮，AC220V,50/60Hz, 2A |
|
Weight |
20kg |
24kg |
28kg |
