Household Electronic Appliances Withstand Voltage Furniture Test Machine

Performance characteristics

To meet the IEC60335 ,  UL60335 ,  GB4706 . 1-2005 ,  GB4943 and other domestic and international safety standard test ,  with JJG795-2004 ,  JJG690-2003 safety rules of metrological verification requirements .  Convenient operation ,  output voltage is displayed by a digital panel meter ,  clear ,  intuitive ,  accurate .  The advanced technology ,  reasonable layout ,  and has the advantages of high accuracy ,  good reliability .

Product parameters :

Test voltage :  AC 0 ~ 5  ( kV )  DC 0 ~ 1 . 5  ( kV )

The display precision :  AC 0 . 5 ~ 5  ( kV )  DC 0 . 5 ~ 1 . 5  ( kV )  ≤ ± 5%

The breakdown current :  AC 0 . 5/1/2/5/10/100  ( mA )

The display precision :  DC 0 . 5/1/2/5/10  ( mA )  ≤ ± 5%

Output waveform :  50Hz sine wave or DC

Time :  1 ~ 99  ( s )  manual ∞ ± 5%

Output power :  AC : 500VA DC : 150VA

Display :  digital display

Test :  pass / fail failure alarm

Environmental requirements :  relative humidity ≤ 75%RH ambient temperature 0 ～ 40 ℃

Power :  the static power consumption is lower than 30VA

Weight :  25KG

Volume :   ( W*H*D )  mm3 380*200*315

Power supply :  AC 220V ± 50Hz 10% ± 5%

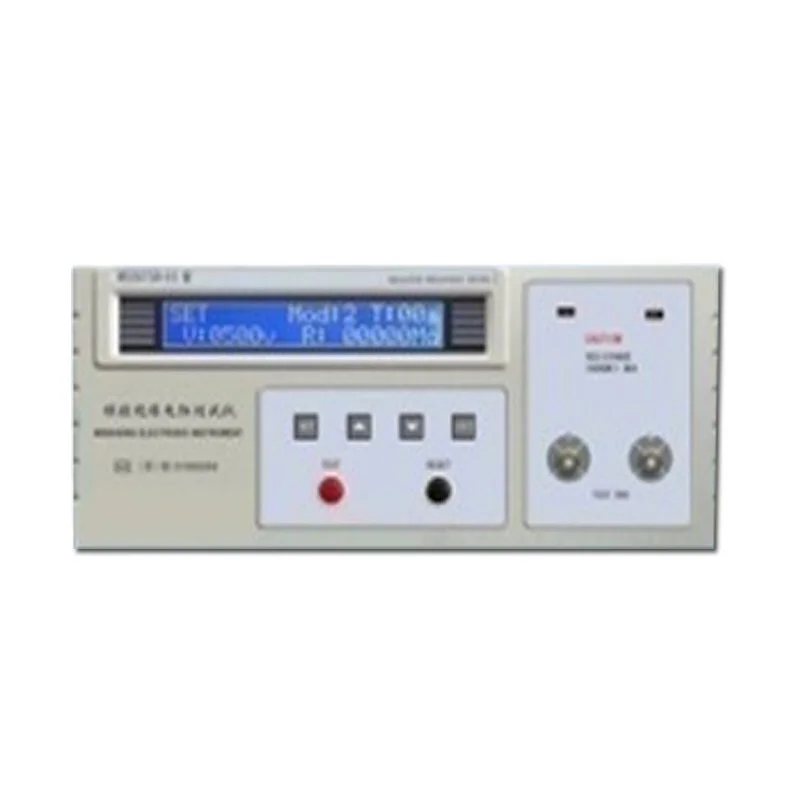

MS2670B-IC

Main function :  manual boost ,  pass / fail alarm ,  breakdown protection function
