Impact Test Rig For Manufacturing Toys

Details :

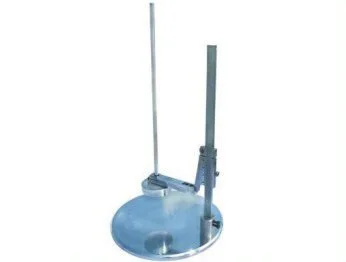

Impact test rig

Meet the standards :  EN 71-1998 8 . 7 standards

Plate size :   ( L × W × H )  300 × 300 × 500mm

Adjustable height :  0-300mm

Hammer surface diameter :  80 . 00mm

Hammer Weight :  1Kg

Material :  Steel ,  chrome plating surface treatment

Purpose :  To reduce the material damage due to manufacturing toys or imitation protective device protective device as true face the danger .

Range :  Imitation protective device  ( such as a transparent material protection / helmet / hat / goggles ,  etc .  )  .  Only adapt to the European single  ( EN 71-1998 . 8 . 7 )

Procedure :

<1> Toy think the weakest position on a horizontal steel surface .

<2> 1 ± 0 . 02kg mass of 80 ± 2mm in diameter piece of metal from 100 ± 2mm height of free fall to the toys .

<3> repeat once again .

4 Assessment :  Sample tests appear sharp point / sharp edges / small objects or Baolie phenomena are considered ineligible .
