Office Chair Caster Durability Testing Machine

Office Chair Caster Durability Testing Machine

Minimum
1 SET
Delivery
15 days after order.
Model
HD-F732
Country
China
BrandName
HD
Package
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment
L/C, D/P, T/T
Price
FOB, CIF

Product description:

Office Chair Caster Durability Testing Machine  :To evaluate the ability of chair base and casters to withstand fatigue stresses and wear caused by moving the chair back and forth. Seat surface to place the weight (113 kg), the holding fixture driven by motor and timing belt move to and fro, in order to assess the the casters of wear life, stroke rate and the number of times can be set.



Specifications

1.Office Chair Caster Durability Testing Machine  is used to evaluate the quality and wear life of the caster in chair.
2.OEM



Main technical parameters:





driving mode

variable frequency motorand timing belt

Stroke

762mm (+ 50mm)

rate

8 ~ 12 times / min

holder with the up and down adjustment range

80mm~500mm

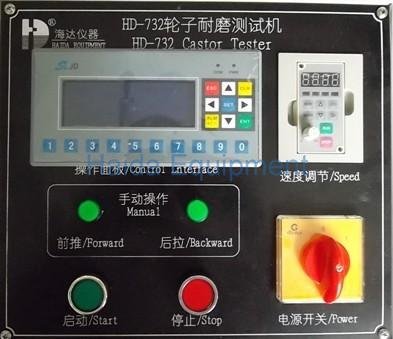

control mode

PLC and LCD display

Voltage

220V single-phase, 900W

Design standard

Bifma x 5.1 clause 17

1. Starting point for self-regulation.

2. Accessories: a weight of 23 kg of load-bearing base divided into 9 equal portions per box, placed a 10-kilogram weight, the overall weight equal to 113 kilograms.

3. Base barriers block can be removed, for smoothing the surface accessibility block test.
