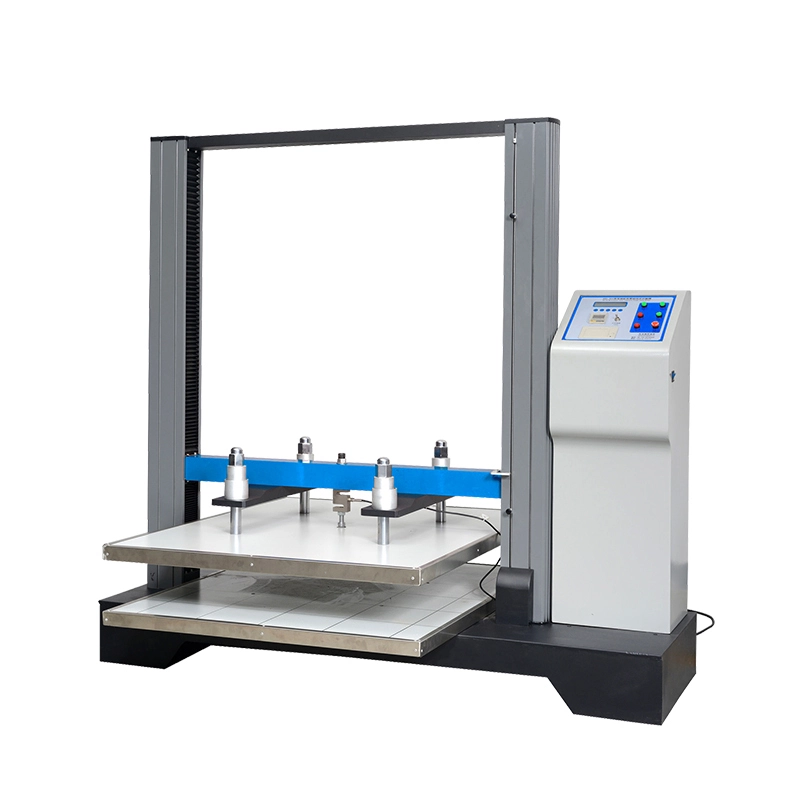

Servo Container Compression Tester

Model

HD-A502-1500

Capacity (optional)

2 T/5T

Unit (switchable)

KG, LB, N

Load Resolution

1/100,000

Load Accuracy

 ≤0.5%

Test Space (L×W×H)

1300×1500×1500mm

Speed of Compression

10 ± 3 mm/min

Operation Mode

PC

Report Items

Serial number, Peak value, Average value, Designated holding pressure value;  are all memorable

Structure

AC Frequency Conversion Motor ( Taiwan);
General screw rod

Dimension (L×W×H)

2000×1200×2030 mm

Weight

Approx. 730kg

Power

1∮220v/ 50Hz

Safety Devices

Overload protection, overvoltage protection & limiting position protection device

Standard

TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

Computer Container Compression Tester

The usage:

It's used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

Computer Container Compression Tester

Features:
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
