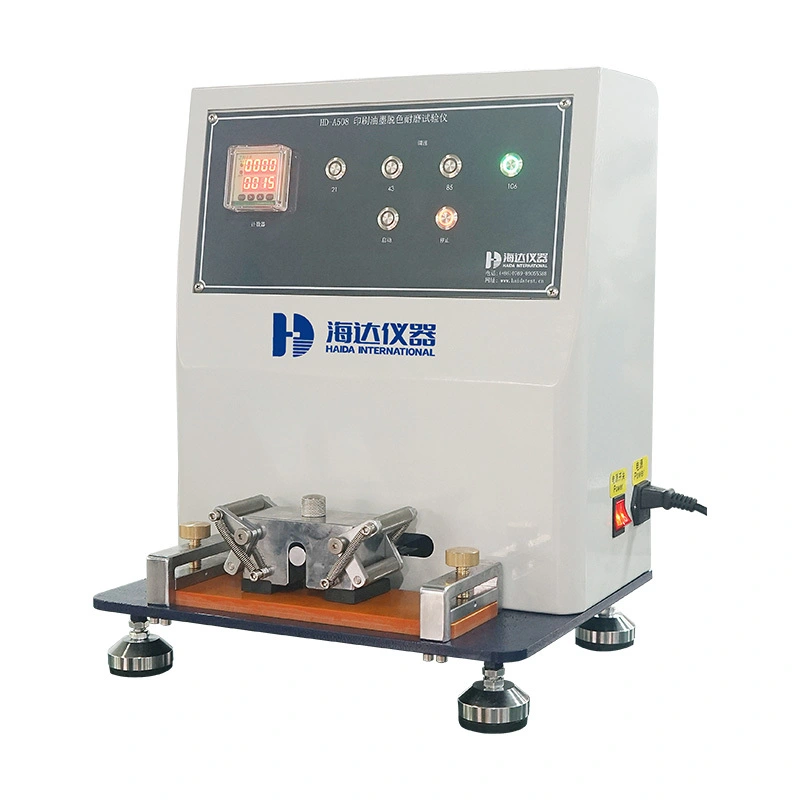

GB/T7706 Ink rub resistance tester
1. Application:
Ink rub resistance tester is is mainly applied to test the abrasion resistance of printed ink layer of printed matter. Wrap the standard size friction paper in the friction head, rub the surface of the specimen with the specified speed, pressure, etc., and observe the specimen ink layer shedding.
2. Design criteria: TAPPI-UM486, JIS-5071-1, GB/T 7706-2008, GB/T 7705-2008
3. Technical parameters:
Item | HD-A508 |
Specimen Size | Minimum Size: 230×50 mm |
Friction Speed | 43 times/min ( 21,43,85, 106 times/min, adjustable) |
Friction Load | 2040g ( 20N); 908g(2LB), 1810g(4LB) (Optional) |
Friction Stroke | 60 mm |
Friction Area | 50×100 mm |
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
