Toilet seat ring and cover swing life test machine

Model:

5058-HD

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Delivery:

15 days after order.

Inquiry

Write a Review

Product Description

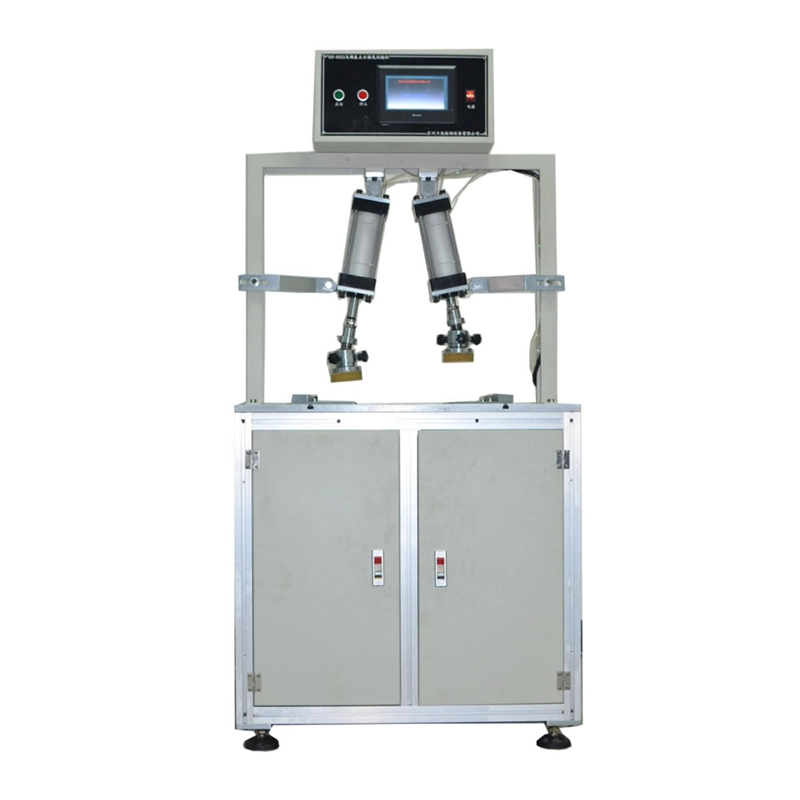

Toilet seat ring and cover swing life test machine is developed for the swing life test of toilet seat rings and covers. During the test, the sample was installed on the test platform. Two cylinder mechanical hands on the left and right alternately pushed and pressed the seat ring and the cover, with a pushing time of 1 second and an interval of 0.5 seconds, to verify the force conditions of the sample during normal use.

Test standards: JCT 764-2008《Toilet seat ring and cover》Appendix A

Product Specifications

Model	5058-HD
Function	Swing life test of toilet seat ring and cover
Swing thrust	0-2000N(adjustable)
Force application method	Pressure is applied by the cylinder, and the force value is adjusted by regulating the air pressure
Cylinder specifications	Cylinder inner diameter φ50.8mm, stroke 127mm
Pressure plate specification	Diameter φ76.2mm, thickness 19mm
Force application time	0-99.9 seconds (adjustable)
Force measurement method	Before the test, the air pressure at which the force value is set is calibrated through the force sensor. During the test, the test air pressure is maintained to accurately measure the force value.
Control mode	PLC+ human-machine interface
Working cycles	0- 99,999 times can be set;
Power supply	220± 10% V /50Hz;
Dimensions	Length 1000mm x Width 800mm x Height 1500mm
Features	Formed aluminum frame,Formed aluminum frame
