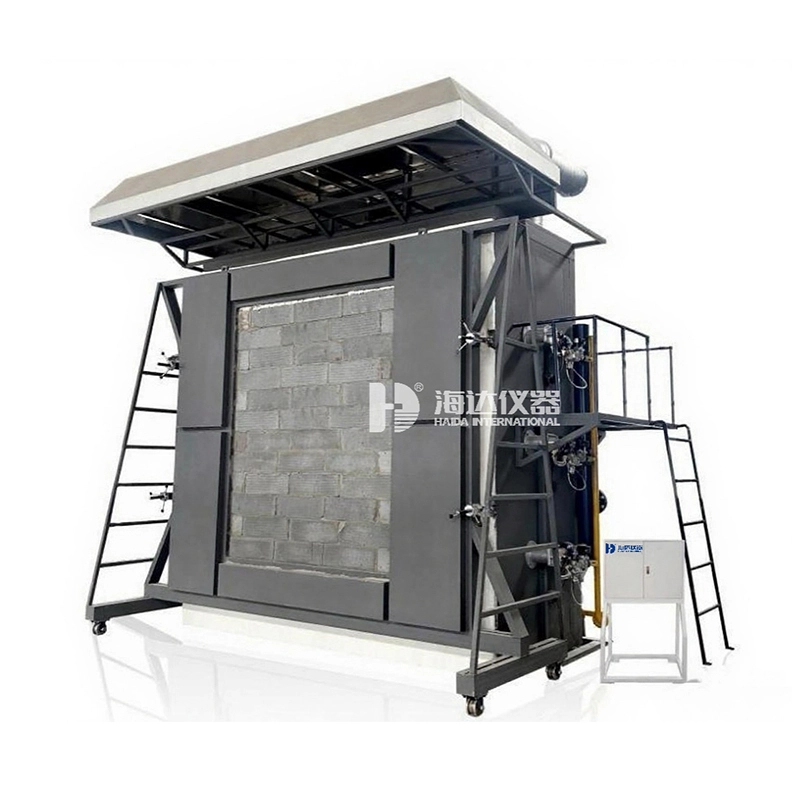

Vertical Furnace for Fire Resistance Testing of Building Components 1
Vertical Furnace for Fire Resistance Testing of Building Components 1

Vertical Furnace for Fire Resistance Testing of Building Components

    oops...!

    no product data.

    Go to homepage

    Product Description

    1. Applicable for fire resistance tests on products such as doors and roller shutters installed in vertical partition openings, to determine integrity and insulation failure times.

    2. Suitable for fire resistance tests on fire doors (GB12955), glazed components (GB12513), fire shutters (GB14102), and fire-resistant glass (GB15763.1).

    3. With over 20 years of technical expertise, the vertical furnace offers improved accuracy and reliable stability.

    4. The furnace heating and pressure conditions comply with GB/T 9978.1 standard requirements.


    Compliance Standards:

    GB/T 9978.1-2008 Fire Resistance Tests — General Requirements

    GB/T 12955-2008 Fire Door Test Standards

    GB/T 7633-2008 Fire Resistance of Doors and Shutters

    GB 16809-2008 Fire Window Standards

    GB/T 12513-2006 Glazed Components Fire Resistance Test

    GB/T 8478 Aluminum Alloy Door and Window Standards

    GB 15763.1-2009 Fire-Resistant Safety Glass

    Vertical Furnace for Fire Resistance Testing of Bu

    Product Specifications

    Model 6045-HD
    Service Life ≥15–20 years
    Internal Temperature Up to 1300°C
    Insulation Material Zircon-containing refractory cotton (1600°C rating)
    Furnace Dimensions 3000mm (W) × 3000mm (H) × 1500mm (D)
    Frame Material Q235-A structural steel
    Refractory Brick Max 1750°C; Long-term 1600°C
    Protective Coating Three-layer anti-corrosion coating
    Foundation Load  ≥750 kg/m²
    Required Space ≥150 m², ceiling height ≥5.5 m
    1663122143192922-2

    Advanced Top Pressure Device

    The electric pressurizing system ensures stability during the wrapping process by preventing goods from scattering or displacing. With an adjustable pressurizing stroke ranging from 500mm to 2000mm, it doubles the range compared to traditional pneumatic systems, making it suitable for a broader range of applications.

    AAutomatic Film Cutting and Clamping

    The 5131-HD model includes an innovative automatic cut and clamp film system. This feature eliminates the need for manual film handling, saving time and improving worker safety.

    1663122148115561-2
    1663122144642378-2

    SIEMENS Control System

    If you want to buy a good and durable machine, the eletrical parts will be very important. If one eletric use a bad brand, it's a big risk for the customer, becuase one part does not work, the whole machine will stop working. The machine’s electrical components are built using high-quality SIEMENS parts to ensure durability and reliability. This minimizes the risk of malfunctions and simplifies troubleshooting, providing a dependable wrapping solution for long-term use.

    IoT-Enabled LCD Touch Operating System

    The Haida pallet wrapping machine features an intuitive LCD touch screen.

    Key benefits include:

    Direct control of turntable speed, up/down speed, and film carriage speed.

    Six pre-set wrapping models to accommodate different pallet requirements, allowing users to switch settings effortlessly.

    Hf91793d1d90f4224b3944f36577
    1663122149805948-2

    Remote Control System

    A dedicated remote control simplifies machine operation, enabling users to start or pause wrapping tasks with ease. Each remote is uniquely paired to a single machine for seamless control.

    Why Choose Haida

    As a leading provider of Pneumatic Automatic Pallet Wrapping Machine solutions, we offer advanced stretch wrappers designed to enhance efficiency and streamline pallet wrapping operations. Whether you're looking for reliable Orbital Stretch Wrappers for Sale or top-tier pneumatic systems, our machines cater to diverse packaging needs with cutting-edge features.

    Enhanced Efficiency: Fully automated processes save time and labor.

    Versatility: Suitable for various pallet sizes and types.

    Reliability: High-quality components reduce maintenance and downtime.

    User-Friendly Interface: Simplified controls make the machine accessible to all operators.

    1663122143712114-2
