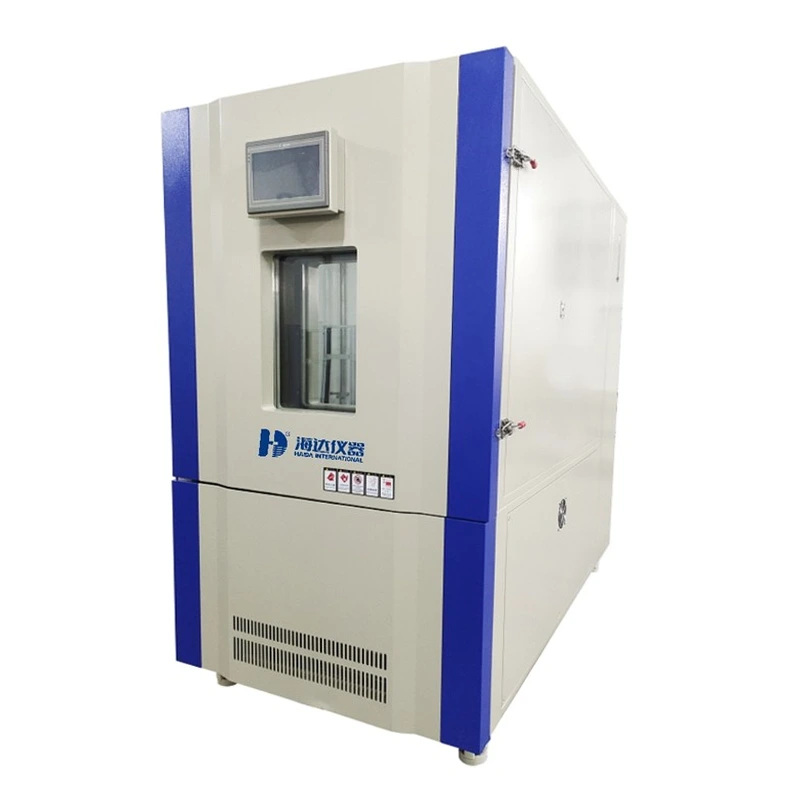

VOC Test Chamber

It is used to test VOC (volatile organic compound) emission of various wood-based panel, composite wood flooring, carpet, carpet padding, and other interior decoration materials, also other building materials under constant temperature humidity.

Model:

HD-F801-1

Inquiry

Write a Review

Product Description

VOC Test Chamber is Working Principle: Put sample into 1000L square test chamber, under specify temperature, humidity, air velocity. The VOC and formaldehyde will released from samples and mixed with the air in the chamber, the air will be drawn through the absorption bottle is filled with distilled water, all the formaldehyde in air dissolve in the water; Measure the amount of formaldehyde in the absorption solution and extraction of air volume, and show it by micrograms per cubic meter (mg/m³).

Design Standard

ISO 16000-9

EN 16516

Product Specifications

Model	HD-F801-1
Inner dimension(WDH)	(1±0.02)m3
External dimension(WDH)	123021502020mm(WDH)
Test temperature range	(15- 40)℃ (deviation: ±0.5℃, Resolution 0.1℃) Adjustable
Humidity range	(35- 80)% R.H. (accuracy:±3%, Resolution 0.1%) Adjustable
Background levels	Formaldehyde≤0.006mg/m³
	TVOC≤0.02 mg/m³
	Single VOC≤0.002 mg/m³
Air Velocity	(0.1~0.3)m/s, Adjustable
Air Velocity	Accuracy: ±0.05 m/s
Air replacement rate	(0.2-1.5) m3/h; accuracy: ±5%; continuously adjustable
Leakproofness	1KPa relative pressure, leakage rate＜10-3×1m³/min, import and export air differ＜1%
Adiabaticity	The inner walls and doors of chamber shall have effective thermal insulation
Noise	The noise level of the climate chamber during operation is not more than 60dB
Continuous working time	Can work 28 consecutive days or more
Material	Jacket structure design, two layers of stainless steel inner chamber, middle air layer, mirror stainless steel inner chamber, does not produce and absorb formaldehyde, the outer steel plate is sprayed
Operating environment	+ Power supply: 220/380V, 50Hz (high temperature requires 20KW three-phase AC power source)
	+ Ambient temperature: 15-40℃;
	+ Ambient humidity: 5% - 90% RH
Controller	+ 10-inch touch screen control panel is used as a dialogue interface for equipment operators.
	+ Can directly set and digitally display temperature, relative humidity, temperature compensation, dew point compensation, dew point deviation, temperature deviation.
	+ This equipment uses genuine imported sensors and can automatically record and draw control curves.
	+ Can be connected to wireless networks, mobile phones and computers to monitor the operation of the equipment at any time.
	+ Data is transferred and stored for up to two years.
	+ Digital pressure display
	+ Record start-up time and cumulative working time
	+ Digital flow display, mass flow meter control
	+ Wind speed adjustment, Siemens inverter control
Cooling system	Using genuine imported compressor (Aspara)
Humidity control method	The dry-wet ratio adjustment method is used to control the relative humidity of the working cabin. The humidity is stable, the fluctuation amplitude is <3%rh and does not create water droplets on the cabin wall.
Gas supply system	Oil-free air compressor, cold dryer.
Gas sampling device	+ Sampling speed: (0.25-2.5) L/min
	+ Adjustment accuracy: ±5%.
	+ Sampling time: can be set freely within 99 hours
Configuration of sampling tubes	impingers, gas samplers, etc.
