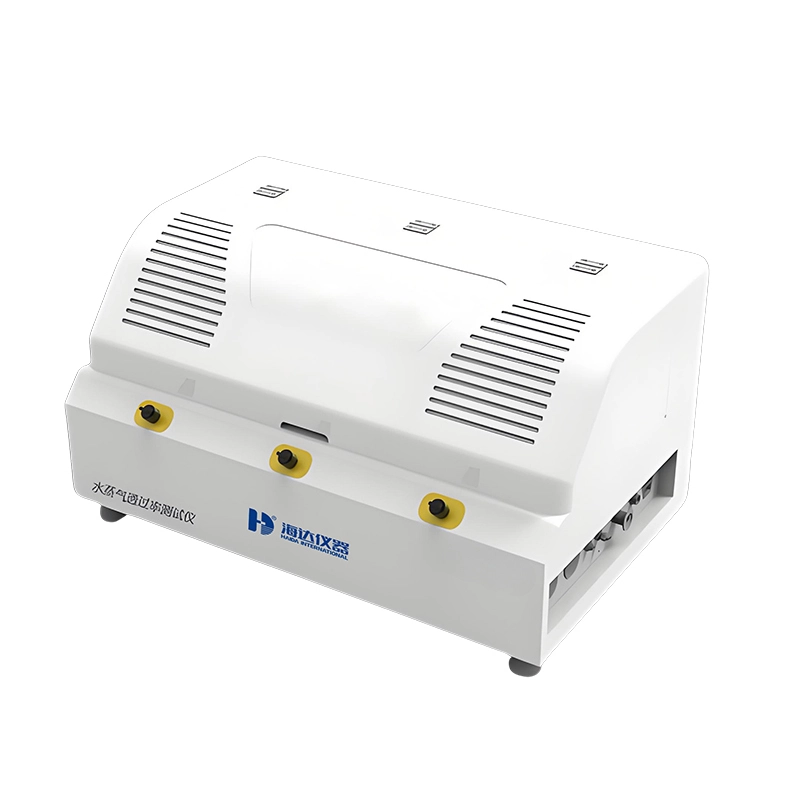

Water Vapor Permeability Tester

Water Vapor Permeability Tester is based on the testing principle of infrared moisture analysis sensor, providing a wide range and high efficiency water vapor transmission rate testing experience for medium and high water vapor barrier materials. It is suitable for water vapor transmission performance testing of plastic films, composite films, high barrier materials, backboards, sheets, paper, metal foils, packaging and other related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc. It can also be expanded to test the water vapor transmission performance of containers such as bottles, bags, and tubes.

Model:

5098-HD

Inquiry

Write a Review

Product Description

Test standards

GBT 26253、ISO 15106-2、ASTM F1249、TAPPI T557、JIS K7129ISO 15106-3、DIN 53122-2、YBB 00092003

Feature

1. Equipped with laser pulse modulated infrared sensor, long optical path absorption, and higher measurement accuracy;

2. The three test chambers are completely independent and can test three identical or different samples at the same time (expandable container test);

3. One-button operation, the system adopts computer full intelligent control, and the entire test process is completed automatically;

4. High-quality components are used to ensure the stability and reliability of the instrument operation;

5. Automatic test: set the test parameters, the test will be automatically carried out after the start, and the test end will be automatically judged and the test results will be saved

6. Standard intelligent software monitors the test status in real time, saves the test data throughout the process, and is convenient for post-evaluation of the test process;

7. The system has self-detection capabilities and power-off data storage functions to avoid testing under fault conditions and protect data security during sudden power outages;

8. Wide range, high precision, fully automated temperature and humidity control, which can automatically meet the test under various test conditions according to parameter settings;

9. Provide multiple test process judgment modes such as manual, proportional and cyclic, which is convenient for the selection of various test needs;

Product Specifications

Model	5098-HD
Measuring range (membrane)	0.01～40 g/(m²·day) (standard)
Measuring range (membrane)	0.1～1000 g/( m²·day) (optional)
Resolution	0.001 g/( m²·day)
Number of samples	1～3 pieces
Sample size	φ110mm
Transmission area	50cm² (other customization)
Sample thickness	<3 mm (other customization)
Sample clamping method	Pneumatic clamping
Temperature control range	5℃～65℃ (constant temperature water bath temperature control)
Temperature control accuracy	±0.1℃
Humidity control range	0% RH, 5%～90%RH, 100%RH (fully automatic control)
Humidity control accuracy	±1%RH
Calibration method	Standard film calibration
Carrier gas	99.999% high purity nitrogen (gas source provided by the user)
Carrier gas flow rate	0～100 mL/min
Gas source pressure	≥0.2MPa
Interface size	1/8 inch metal tube
Dimensions	1000mm (L)×580 mm (W)×570mm (H)
Power supply	AC 220V 50Hz
