This products is an vacuum mixing and disperse into one efficient equipment.It suitable for the mixing process of positive and negative slurry.
Product Description

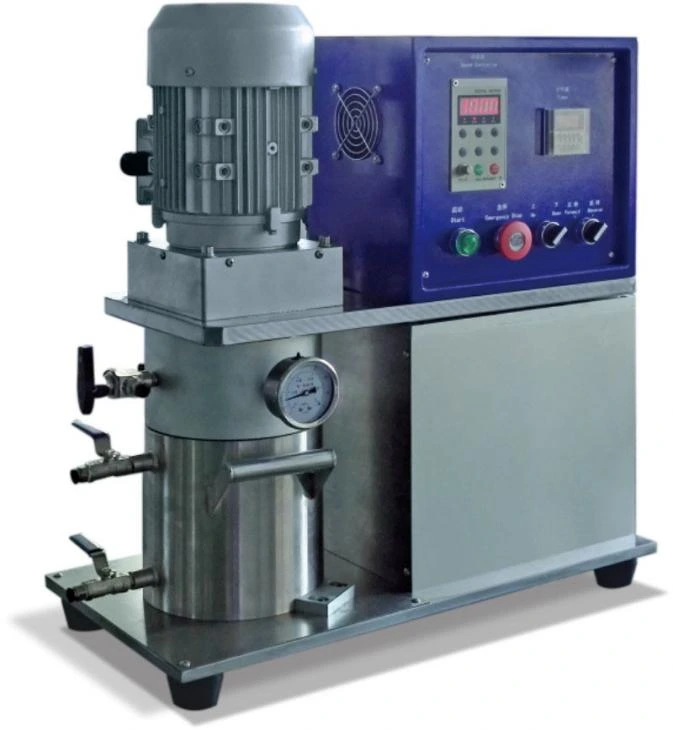

This products is an vacuum mixing and disperse into one efficient equipment.
It suitable for the mixing process of positive and negative slurry. And a mixture of powdered materials and various ceramics.This products is use the programmable controller to setting time, speed, and direction of rotation.
Product Specifications
| Model | 8051-HD |
| Power rating | 0.75KW,220V |
| Stirring speed | 0-2800 rpm; speed regulation by frequency converter |
| Vacuum | -98 KPa (No vacuum pump) |
| Material tank effective volume | 1X 2L tank;Φ100mm diameter,160 mm outer diameter,140 mm high |
| Material barrel opening and closing mode | cylinder drives the upper cover up |
| Machine size | 0.7 M×0.6 M×0.3 M( H × L× W) |
| The tank has a cold wall | |
| Have timing function, can set time 0-99(H) | |
| Until it stops running automatically, can always in vacuum | |
| Tank cover | vacuum gauge, vacuum outlet, etc |
| Full weight | about 90 kg |
