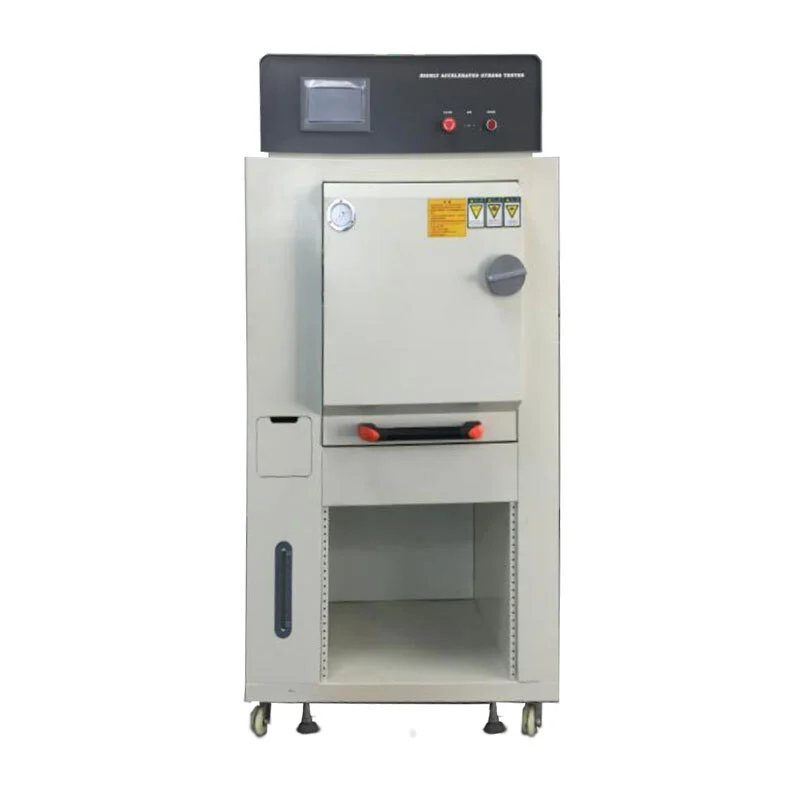

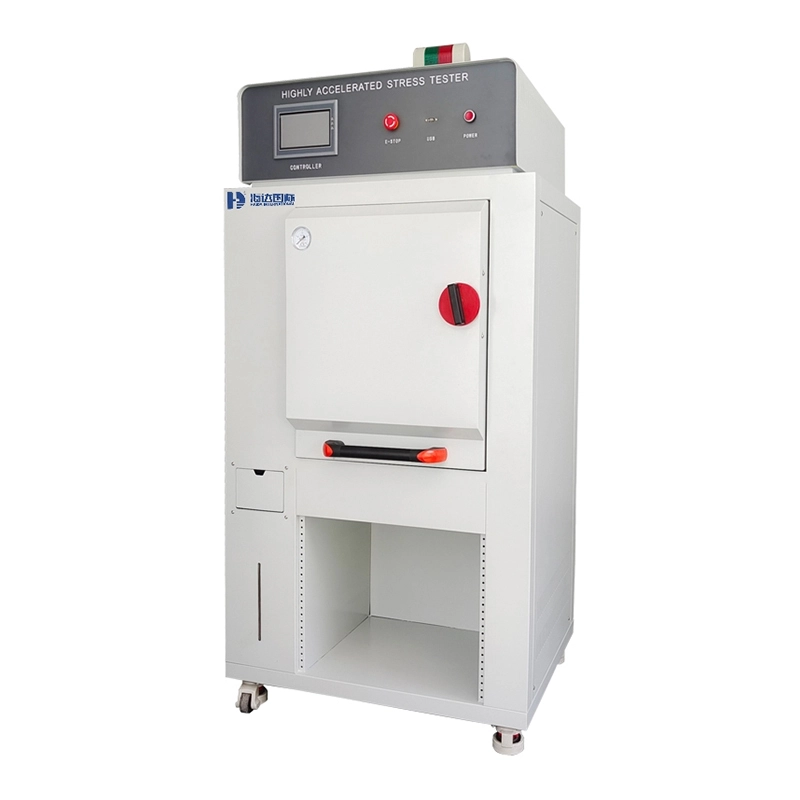

Highly Accelerated Stress Test Chamber

Model:

HD-E810-HAST

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Delivery:

15 days after order.

Inquiry

Write a Review

Product Description

HAST, or High Accelerated Stress Test chamber, is a test method that accelerates product ageing by subjecting samples to high temperatures, high humidity, and high pressure. It is widely used in industries such as PCBs, IC semiconductors, connectors, circuit boards, magnetic materials, polymer materials, EVA, and photovoltaic components to conduct accelerated ageing life tests on related products. This test is used to evaluate product sealing, moisture absorption, and ageing performance.

Product Specifications

Model	HD-E810-HAST
Sample limitation	This test equipment prohibits:
	Testing or storage of samples of flammable, explosive and volatile substances.
	Testing or storage of samples of corrosive substances.
	Testing or storage of samples from strong electromagnetic emission sources.
Inner dimension	Φ400×D 500 (mm)
Outer dimension	About 1050x 980 x 1850 mm (W * D * H) Subject to the final drawing
Environmental conditions	Temperature of +25℃, Relative humidity ≤ 85%RH, and without load
Test Method	GB/T 5170.2-1996
Temp. Range	+105 ℃ ～ +147 ℃ (vapor temperature )
Temp. Fluctuation	±0.5℃.
Temp. Uniformity	±2℃；
Humidity Range	75% ～ 100 %RH
Humidity Display	±0.5%RH.
Humidity Control Stability	±3.0% RH.
Pressure Range	1.2~2.89Kg / cm2 (included 1atm)(Pressure inside)
Uniformity of pressure fluctuation	±0.1Kg
Heating Rate	Ambient→ + 147℃ About 55 min.
Pressure Rising Time	0.00 Kg ～ 1.04 Kg / cm2 About 45 min；
Condition of loading	Magnetic materials
Bias terminal	The bias voltage test terminal can withstand a voltage of up to 3000V(optional function). Please specify when ordering
Meet Standard	IEC60068-2-66; JESD22-A102-C; JESD22-A110-B;JESD22-A118; GB/T 2423.40
Insulation structure	Outer wall material: SUS#304 stainless steel plate or high-grade steel plate with plastic coating.
	Inner wall material: Stainless steel plate SUS# 316 3mm.
	The insulation material for the chamber body: rock wool and rigid polyurethane foam insulation.
Chamber structure	The circular inner box, with a stainless steel circular test inner box structure, complies with industrial safety container standards and is designed to prevent condensation and dripping during tests.
	Round liner, stainless steel round liner design, independent steam generation chamber to prevent direct steam impact on the product and avoid local damage to the product.
	Precise design, good air tightness, low water consumption, and continuous operation for 400 hours with each water addition.
Air conditioning	Heaters, humidifiers, water supply and drainage outlets, temperature and humidity sensors, pressure sensors
Main Interface	The humidity and steam temperature are controlled by a Mitsubishi customized color touch PLC
Setting interface	It adopts the original imported 7-inch microcomputer color LCD touch screen direct key type, with a wide viewing Angle and high contrast function process controller in both Chinese and English, and is equipped with multiple PID control functions.
Controller Software	7 "TFT true-color LCD touch screen, direct touch option on the screen. The set (SV) and actual (PV) values are displayed directly. Run the cumulative time function.
	The set values are displayed in the form of graphical curves and have the function of real-time display of program curve execution.
	It features a separate editing interface, allowing for the input of temperature, humidity, pressure and test time. Chinese and English can be switched freely.
	The fault prompt screen is displayed; The screen can be adjusted for backlighting.
	The screen display protection function can be set for timing, TIMER or manual off.
Centralized Monitoring software (Optional Function)	It is used for remote centralized monitoring (the operation status of this machine can be monitored through a local area network or directly connected to a computer via the machine, and the machine can be remotely controlled), and one RS-485/RS-232 converter is provided along with the software (centralized monitoring software)
Condition for Machine	The user guarantees the following conditions.
Installation Site	The ground is flat and well-ventilated. There is no strong vibration around the equipment, There is no strong electromagnetic field influence around the equipment.
Installation Site	There are no flammable, explosive, corrosive substances or dust around the equipment. There should be appropriate space for use and maintenance around the equipment.
Environment	The operation should be carried out in a well-ventilated environment.
	Temperature: 5℃ to 30℃ Relative humidity: ≤85%
	Air pressure: 86kPa to 106kPa.
Power condition	AC220V, power fluctuation shall not exceed ±10%, 50/60Hz
Power condition	It is required that the user configure the corresponding capacity air or power switch for the equipment at the installation site, and this switch must be independently used for this equipment.
Requirements for storage environment	When the equipment is not in operation, the ambient temperature should be maintained within 0℃ to +45℃.
Requirements for storage environment	When the ambient temperature is below 0℃, the remaining water in the equipment should be drained completely to prevent the water in the pipes from freezing and damaging the pipes.
