    Product Description

    We can customize all your temperature and humidity test chamber needs. Find premium test chamber.

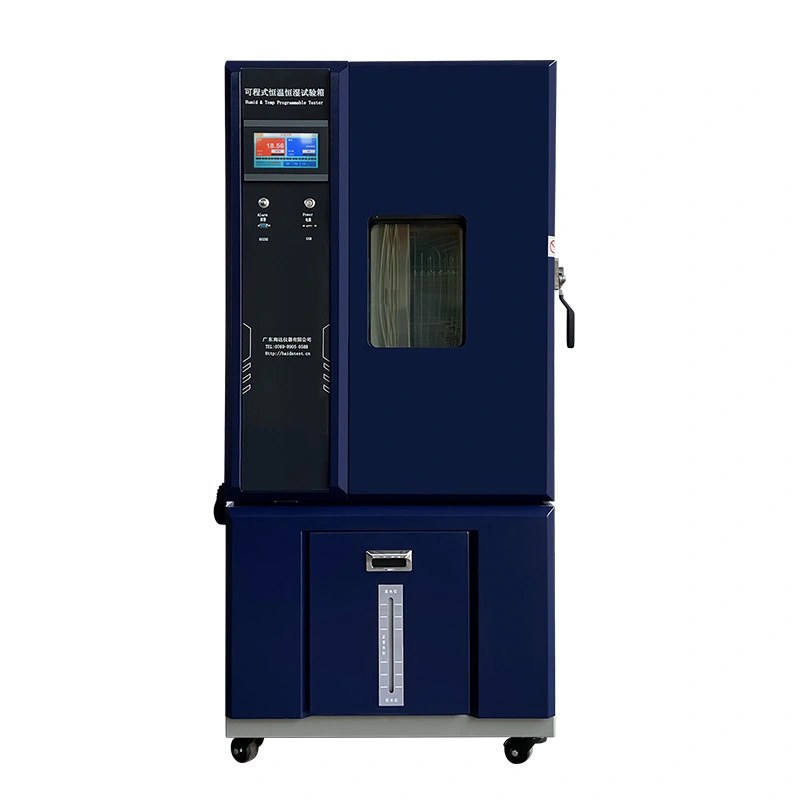

    Temperature and humidity test chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.

    retouch_2024111311345794

    Product Specifications

    Our specialists can help you find the perfect temperature and humidity test chamber.

    Model HD-E702-100 HD-E702-150 HD-E702-225 HD-E702-408 HD-E702-1000
    Internal Dimension (W*H*D) 400*500*500mm 500*500*600mm 500*750*600mm 600*850*800mm 1000*1000*800mm
    External Dimension (sus Type) (W*H*D) 950*1400*1100mm 1100*1500*1100mm 1100*1670*1200mm 1200*1770*1400mm 1550*2100*1400mm
    External Dimension (paint Type) (W*H*D)  700*1400*1100mm  800*1500*1100mm  800*1670*1200mm  900*1770*1400mm  1550*2100*1400mm
    Temperature(℃) -20/-40/-70
    Total Power (KW) 4.5/4.5/6.5 5/5/6.5 9.5/9.5/11.6 9.5/9.5/11.6 17/17/21.5
    Maximum Current (A) 25/25/32 32/32/40 25/32/40 32 50/50/60
    Voltage (A) Sigle Phase 220V Three Phase 380V
    Performane


    Products Advantages

    Substantive yet chic, we create magnificent designs that exudes grandeur without compromising on comfort and reliability. Our thoroughly engineered products combine convenience with sophistication.

    Constant Temperature and Humidity Test Chamber-1732788176895702 8
    Precise Temperature and Humidity Control
    Equipped with high-precision sensors and an advanced PID control system, our chamber ensures exact temperature and humidity regulation, creating a stable testing environment.
    Constant Temperature and Humidity Test Chamber-1732788176895702 9
    Wide Temperature and Humidity Range
    Provides a broad testing range to meet various product testing needs, from low temperature and high humidity to high temperature and dry conditions.
    Constant Temperature and Humidity Test Chamber-1732788176895702 10
    Rapid Temperature Change Rate
    Features robust cooling and heating systems that allow for quick temperature adjustments, significantly reducing test time and enhancing overall testing efficiency.
    book
    Intelligent Control System
    The user-friendly touchscreen interface and remote control capabilities make operation effortless, allowing for real-time monitoring and adjustments to improve the user experience.

    Product Characteristics

    The Haida temperature and humidity test chamber, crafted from durable stainless steel, ensures precise environmental simulations. It aids clients in testing product reliability and stability, enhancing quality assurance.

    radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)
    Energy-saving refrigeration system with expansion valve system.
    radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)
    Accurate humidity control (including Low Temp. & Low Humidity control).
    radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)
    RS-232/485 communication by specialized software.
    yuandian
    EU regulation approved gas as optional, refrigeration type R449A and R508B.
    yuandian
    Interior dimensions can be customized.
    HD-E702-100K&150K

    Product Details

    The temperature and humidity test chamber redefines excellence with its cutting-edge precision and control, flawlessly simulating diverse environments for accurate, reliable testing.

    32996903-f54d-4ee2-89df-cd2dd03b31a0
    Note: Low Temp. & Low Humidity test condition is customized and optional.
    0X9A0077
    Internal Chamber High performance and quiet operation (68 dBA) Full thermal break around doorframe
    0X9A0087
    PLC Operation Step types include: ramp, soak, jump, auto-start, and end.
    561EB2D3-5F10-4DFC-9518-AF944BDC88BC-5997

    High performance refrigeration Scroll compressors

    The Haida temperature and humidity test chamber features a premium compressor designed to ensure precise environmental simulation. This high-performance compressor provides consistent cooling, stability, and energy efficiency, supporting rigorous testing standards across various industries and ensuring reliable operation for long-term durability.

    Product Application

    Ideal for simulating extreme climates, our temperature and humidity test chamber ensures product resilience in diverse environments, from scorching deserts to freezing tundras, guaranteeing optimal performance under any conditions.
