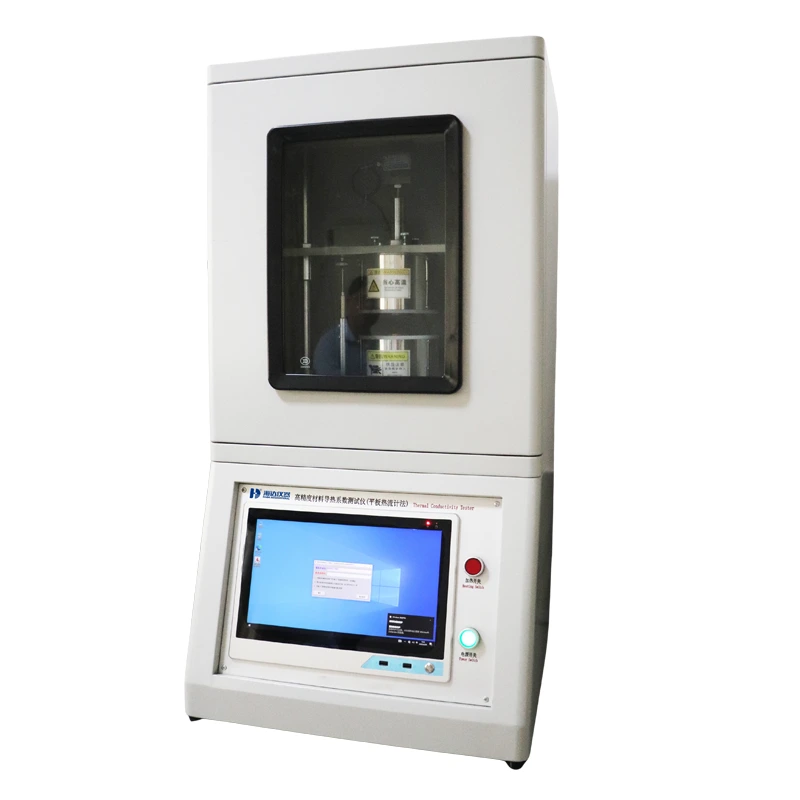

Flat Plate Thermofluidometer Method

Thermal Conductivity Tester/Flat Plate Thermofluidometer Method adopts the internationally popular method of heat flow meter to detect thermal conductivity and thermal resistance, with computer to realize fully automatic detection and generation of experimental report.

Model:

60086-HD

Inquiry

Write a Review

Product Description

Thermal Conductivity Tester adopts the internationally popular method of heat flow meter to detect thermal conductivity and thermal resistance, with computer to realize fully automatic detection and generation of experimental report.

The instrument adopts to add stable hot surface temperature on one side of the specimen, the heat is transferred to the cold surface through the specimen, and the transferred heat flow is measured to calculate the thermal conductivity and thermal resistance.

Adopting imported sensors and computer technology, it is characterized by good measurement accuracy, high reliability and good repeatability. Especially suitable for low thermal conductivity measurement (accurate to 0.1mw). It can be used for testing plastics, rubber, thermal insulation materials, aerogel panels, vacuum glass, etc. It is widely used in colleges and universities, scientific research institutes, quality inspection, factories and mines.

Product Specifications

Model	60086-HD
Thermal conductivity range	0.0001 ~ 1W / mk, can be measured accurately to 0.1mw / mk, 0.001 ~ 300W / mk. computer automatically switch range
Measuring accuracy	1%
Specimen size	5050 ~ 150150, 150150 ~ 300300(mm) optional (standard configuration), the thickness is not greater than 50mm.
Sample state	Can test solid material, powder material
Measuring time	15~20 min
Hot surface temperature range	RT~ 99.9 ℃ (standard configuration), RT ~ 299.9 ℃, RT ~ 499.9 ℃ optional
Hot surface temperature control	Plate heater, bi-directional SCR control, temperature control accuracy 0.1℃
Cold surface temperature range	0 ~ 99.9 ℃ (standard configuration), -10 ~ 99.9 ℃, according to user requirements to determine the lower temperature
Cold surface temperature control	Water-cooled to ensure the stability of the cold surface temperature (precision thermostatic water tank, temperature adjustable), temperature control accuracy of 0.1 ℃
Specimen clamping pressure range	0 ~ 1000N, resolution 0.1N
Sample thickness range	Measure automatically, 0 ~ 50mm, resolution 1um
Heat flow meter	Imported original heat flow meter
Data storage	Computerized automatic testing and storage printing and storage of experimental data
Machine dimension	(LWH)5504501500mm
Machine weight	Approx. 100KG
Water bath dimension	(LWH)300350530mm
Water bath weight	Approx. 35KG
Power	1∮ AC 220V 1KW
Standards	GB/T10295-2008, ASTM E1530, ASTM C518-04, ISO 8301, DIN EN 12664

Products Advantages

Best Quality

We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.

Reasonable Prices

We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.

QC Team

We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.

High-End Look

When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

Product Characteristics

Fast and accurate: test can be completed in 10-160S

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

Non-destructive testing: samples are undamaged and can be reused.

Simple sample preparation: no special requirements for sample size.

Wide range of test objects: can test lump solids, granular solids, liquids, powders, colloids, pastes

High flexibility: independent sample holder, detachable probe, flexible testing

Friendly user interface, easy to operate: LCD touch screen display, convenient operation, easy to understand.
