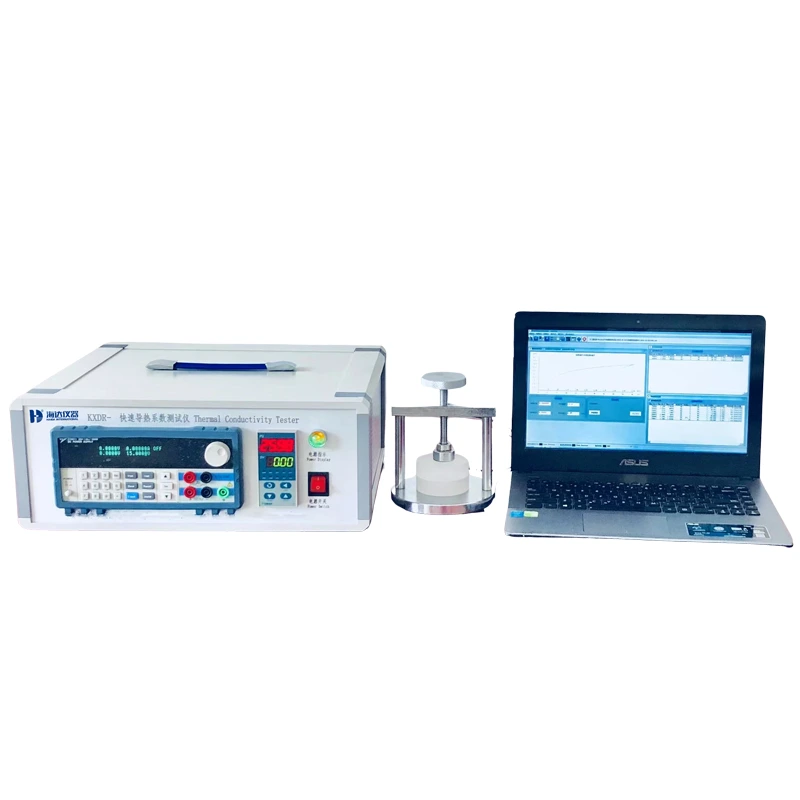

Thermal Conductivity Tester Hot Wire Method

The hot wire thermal conductivity tester (transient method) is measured using the line source test method of the thermal probe.

Model:

60085-HD

Inquiry

Write a Review

Product Description

The hot wire thermal conductivity tester (transient method) is measured using the line source test method of the thermal probe.

This thermal probe has a very large aspect ratio to achieve the simulation conditions of an infinitely long and infinitely thin heat source. It is easy to use, with a plug-and-play probe sensor quick interface and simple software interface operation, allowing users to quickly master and accurately operate. From the beginning of preparation for the test to obtaining the results, it usually takes only 1~2 minutes. It has the advantages of a wide range of applications, fast measurement speed, and accurate measurement results. It has the advantages of small size, easy to carry, and higher cost performance to meet the production, quality inspection, and R&D needs of related industries.

Test Standards: ASTM D5334-2008, GB/T 10297-2015, GB/T 11205-2009, ASTM C1113-2009, ASTM D5930-2009, etc.

Thermal Conductivity Tester Hot Wire Method-2

Product Specifications

Model	60085-HD
Thermal conductivity range	0.0001~50 W/mK; resolution: 0.0001w/mk
Measurement relative error	≤3%
Repeatability error	≤3%
Temperature resolution	0.01℃
Measuring time	2~180 seconds
Sample test temperature range	Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Tested samples	Plastic, soil, soft rock, liquid; paste, granule, powder and other materials
Sample shape	Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required
Sample size	Cylindrical samples, ≥φ30 mm;
	Square samples, 30*30mm;
	Irregular samples, thickness ≥1mm
Control mode	By computer and software
Machine dimension	(LWH)380400165mm
Machine weight	Approx. 5KG
Power	AC 220V±10%, 50/60 Hz, 200W

Products Advantages

Thermal Conductivity Tester Hot Wire Method 3

Best Quality

We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.

Thermal Conductivity Tester Hot Wire Method 4

Reasonable Prices

We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.

Thermal Conductivity Tester Hot Wire Method 5

QC Team

We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.

High-End Look

When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

Product Characteristics

1. Wide test range, stable test performance

2. Direct measurement, test time can be set from 5 to 160 seconds, can quickly and accurately measure thermal conductivity, saving a lot of time;

3. It will not be affected by contact thermal resistance like the static method;

4. Non-destructive testing of samples means that samples can be reused;

5. The probe is designed with a double helix structure, combined with a dedicated mathematical model, and uses the core algorithm to analyze and calculate the data collected on the probe.
