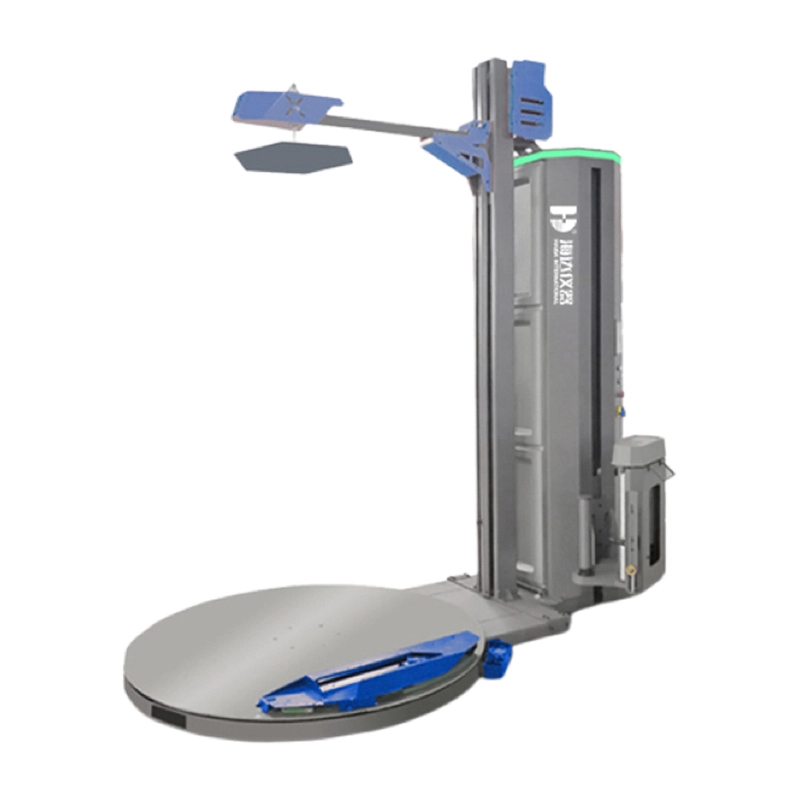

Pneumatic Automatic Pallet Wrapping Machine
Product Description
The Pneumatic Automatic Pallet Wrapping Machine features an electric pressurizing system that ensures stability during the wrapping process, preventing goods from scattering or shifting.
With an adjustable pressurizing stroke ranging from 500mm to 2000mm, it doubles the range compared to traditional pneumatic systems, making it suitable for a broader range of applications.
Product Specifications
| Model | 5131-HD |
| Maximum wrapping speed | 20-35 loads/hour(1x1.2x1.8 m 2 layer NOT include loading and Unload time) |
| Inverter | SIEMENS |
| Maximum pallet size | 1.2*1.2 m |
| Position sensor | SICK(Germany) |
| Maximum Wrapping Height | 2400mm(for pallet height:2300mm +100mm over top) |
| PLC | SIEMENS |
| Turntable Speed | 0-13RPM(Adjustable) |
| Travel Switch | OMRON(Japan) |
| Turntable Size | 1650mm(1500mm/1800mm/2000mm optional) |
| Motor | GPG Taiwan |
| Top Pressure | Have(30KG Pressure Force) |
| Relay | OMRON(Japan) |
| Film Cut & Clamp | Automatic (Mechanical type) |
| Touch screen | X-LINE |
| Max Load Weight | 2000KG |
| Switch | Schneider |
| Standard Film Width | 500mm |
| Photoelectric sensor | Autonics |
| Constant Film Delivery Force | Standard |
| Terminal block | Weidmuller(Germany) |
| Standard Pre-Stretch | 250% |
| 24V power supply | OMRON |
| Film Capacity | 250mm Diameter |
| Up&down Drive system | |
| Fix Film on Pallet | Manual/ OPTIONAL FUNCTION |
| Roping system | Have |
| Ramp | Optional |
| Muti-layer function | Have |
| weighing scale | Optional |
| Machine Size | 2.8*1.65*2.74m |
| Machine weight | 680KG |
| Voltage | 110-240V/50HZ/60 HZ 1/3P |
Advanced Top Pressure Device
The electric pressurizing system ensures stability during the wrapping process by preventing goods from scattering or displacing. With an adjustable pressurizing stroke ranging from 500mm to 2000mm, it doubles the range compared to traditional pneumatic systems, making it suitable for a broader range of applications.
AAutomatic Film Cutting and Clamping
The 5131-HD model includes an innovative automatic cut and clamp film system. This feature eliminates the need for manual film handling, saving time and improving worker safety.
SIEMENS Control System
If you want to buy a good and durable machine, the eletrical parts will be very important. If one eletric use a bad brand, it's a big risk for the customer, becuase one part does not work, the whole machine will stop working. The machine’s electrical components are built using high-quality SIEMENS parts to ensure durability and reliability. This minimizes the risk of malfunctions and simplifies troubleshooting, providing a dependable wrapping solution for long-term use.
IoT-Enabled LCD Touch Operating System
The Haida pallet wrapping machine features an intuitive LCD touch screen.
Key benefits include:
Direct control of turntable speed, up/down speed, and film carriage speed.
Six pre-set wrapping models to accommodate different pallet requirements, allowing users to switch settings effortlessly.
Remote Control System
A dedicated remote control simplifies machine operation, enabling users to start or pause wrapping tasks with ease. Each remote is uniquely paired to a single machine for seamless control.
Why Choose Haida
As a leading provider of Pneumatic Automatic Pallet Wrapping Machine solutions, we offer advanced stretch wrappers designed to enhance efficiency and streamline pallet wrapping operations. Whether you're looking for reliable Orbital Stretch Wrappers for Sale or top-tier pneumatic systems, our machines cater to diverse packaging needs with cutting-edge features.
Enhanced Efficiency: Fully automated processes save time and labor.
Versatility: Suitable for various pallet sizes and types.
Reliability: High-quality components reduce maintenance and downtime.
User-Friendly Interface: Simplified controls make the machine accessible to all operators.
