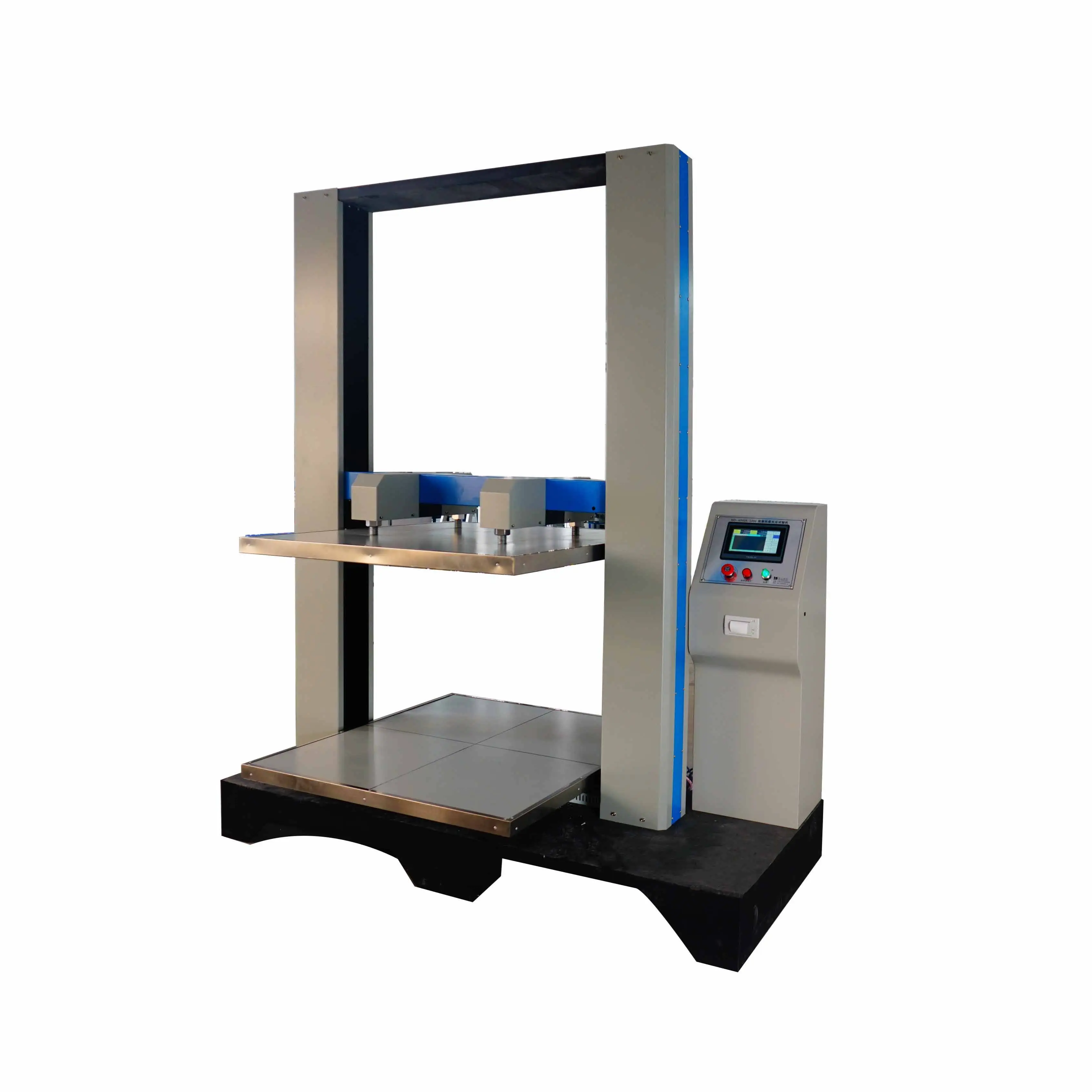

Computer Container Compression Tester Product Description, It's used for measuring the pressure strength of cartons, containers etc, for inspecting the pressure-resistance and strike-endurance of packing materials in transporting, piling.
Specifications Packaging Testing Equipment Box Packaging Testing Equipment
Specifications: | |
Model | HD-A502-1500 |
Capacity (optional) | 2 T/5T |
Unit (switchable) | KG, LB, N |
Load Resolution | 1/100,000 |
Load Accuracy | ≤0.5% |
Test Space (L×W×H) | 1300×1500×1500mm |
Speed of Compression | 10 ± 3 mm/min |
Operation Mode | PC |
Report Items | Serial number, Peak value, Average value, Designated holding pressure value; are all memorable |
Structure | AC Frequency Conversion Motor ( Taiwan); |
Dimension (L×W×H) | 2000×1200×2030 mm |
Weight | Approx. 730kg |
Power | 1∮220v/ 50Hz |
Safety Devices | Overload protection, overvoltage protection & limiting position protection device |
Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
Computer Container Compression Tester The usage: It's used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer. | |
Computer Container Compression Tester Features:
|
