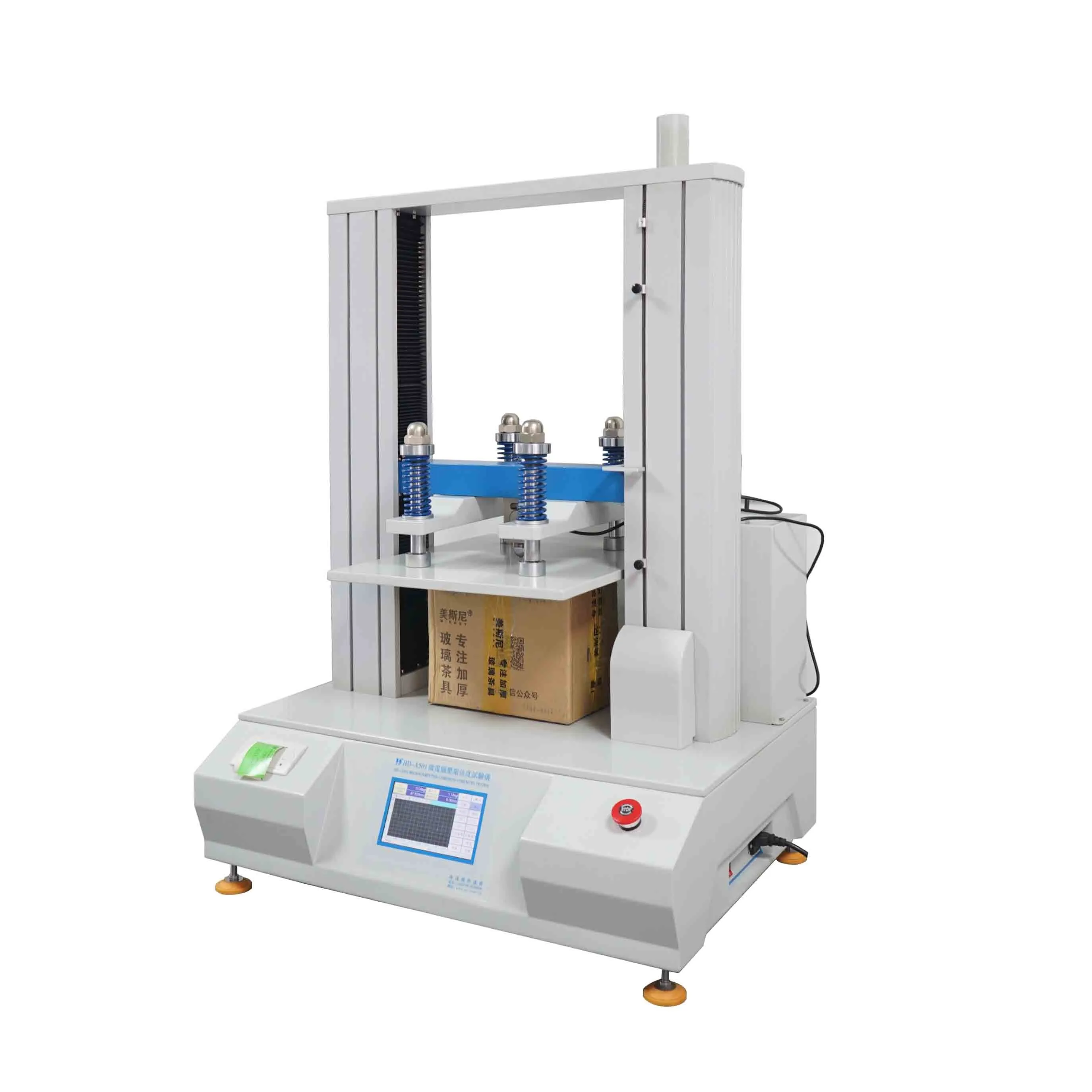

Microcomputer type paper box compression testing machine

Carton Compression Testing Instrument

1. About the machine:
Carton compression testing instrument is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or being carried, and it can be used to do the stacking test. The result of the test can be used as the important reference of the height of the pilling up of the finished product or the important basis of the packing design.

2. Main technical parameters:
Model: HD-501-500
Capacity (optional): 500KG、1000KG

Unit (switchable): kg, Lb, N
Load Resolution: 1/10,000
Load Accuracy: ≤0.5%
Test Space (L×W×H): 400*500*550(mm)

Speed of Compression: 10 ±3mm/min
Report Items: Serial number, Peak value, Average value, Designated holding pressure value; all   memorable
Structure: AC Frequency Conversion Motor (Taiwan);
Dimension (L×W×H): 800*610*1080（mm）

Weight: Approx. 590kg
Power: 220V/ 50Hz

3. Features:
Carton compression testing instrument
Taiwan AC frequency conversion motor drive; Using common screw to up and down, result is accurate and stationary; using the high precision explosion-proof type LOAD CELL; measure by using the microcomputer controlled instrument; Can print test data; High precision, low prices; High sensitivity, can judge the instantaneous.

Details of the figure
