Corrugated Paper Edge Crush Tester
Specifications
Corrugated Paper Edge Crush Tester
1.Computer Servo
2.Multi-function
3.Paper and Packaging Ring
4.OEM.
1.Usage
Corrugated Paper Edge Crush Tester ,Computer servo multi-function carton tension and compression strength tester can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
2.The main technical parameters are as follows:
Corrugated Paper Edge Crush Tester
Capacity (Optional) | 10, 20, 50, 100, 200 kg |
Resolution | 1/100,000 |
Precision | < 0.5% |
Operation Mode | Computer |
Display Mode | LCD |
Platen | 100×100 mm or depending on the diameter of the flat crush sample |
Compressed Space | 500 mm |
Platen Parallelism | ± 0.05 mm |
Ring Crush Sample | 152×12.7 mm |
Edge Crush Sample | 25×100 mm |
Test Speed | 12.7 mm/min |
Dimension (L×W×H) | 790×510×1060 mm |
Weight | Approx. 51 kg |
Power | AC220V, 1.5A |

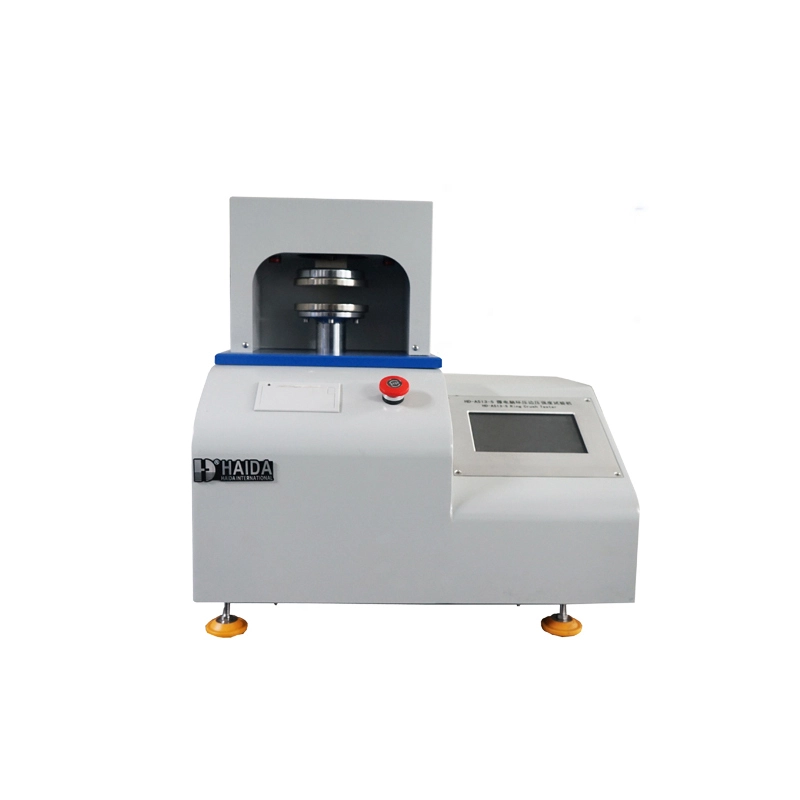

3.The pictures of Corrugated Paper Edge Crush Tester
