    Product Description,

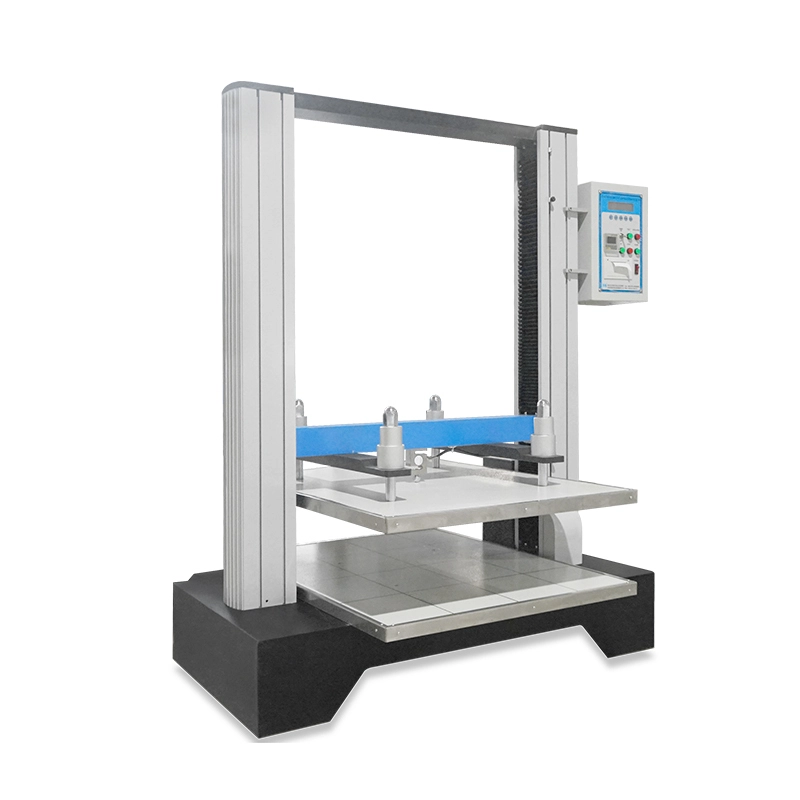

    Paper Container Compression Tester's used for measuring the pressure strength of cartons, containers etc, for inspecting the pressure-resistance and strike-endurance of packing materials in transporting, piling.





    Specifications

    Paper Container Compression Tester

    1.Up to TAPPI-T804, ASTM-D64
    2.Box compression tester
    3.Computer servo control system




     Specifications:

    Model

    HD-A502-1500

    Capacity (optional)

    2 T/5T

    Unit (switchable)

    KG, LB, N

    Load Resolution

    1/100,000

    Load Accuracy

     ≤0.5%

    Test Space (L×W×H)

    1300×1500×1500mm

    Speed of Compression

    10 ± 3 mm/min

    Operation Mode

    PC

    Report Items

    Serial number, Peak value, Average value, Designated holding pressure value;  are all memorable

    Structure

    AC Frequency Conversion Motor ( Taiwan);
    General screw rod

    Dimension (L×W×H)

    2000×1200×2030 mm

    Weight

    Approx. 730kg

    Power

    1∮220v/ 50Hz

    Safety Devices

    Overload protection, overvoltage protection & limiting position protection device

    Standard

    TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

    Paper Container Compression Tester


    The usage:

    Paper Container Compression Tester's used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

    Paper Container Compression Tester

    Features:
    1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
    2. Using a single-screen operation; do not need to switch the screen;
    3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
    4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
    5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
    6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
    7. With self-return & auto-correction function;
    8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
    9. With the user-defined Test methods; with experimental data analysis function;
    10. It can do test of compression, bending, pressure holding & fatigue.
    11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
