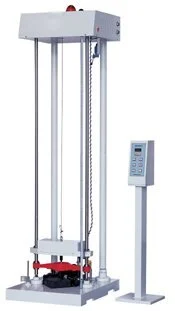

    Safety Footwear Impact Tester


    Description:

    Safety Footwear Impact Tester can be used for a variety of impact (drop) tests with the appropriate anvils and strikers. It is ideal for testing to the safety footwear standards and meets the full requirements of the latest revisions to the standards.


    This machine incorporates many new features, including motorised lift of the striker mechanism which moves automatically to a pre-set height and now incorporates a speed sensor that will determine if the correct impact energy has been achieved. It complies with EN, ANSI, BS, CSA regulations. Impacting the the steel toe caps of satety shoes through 100J or 200J power, then observe the sinkage to value its quality. The design is different among EN, ANSI, BS, CSA, so please prescribe the regulation when ordering.


    A new slide mechanism ensures minimum frictional losses and it also incorporates a belt drive system to provide the striker drop height position. New guarding provides complete operator safety while giving full access to the anvil area for ease of setting up each test. An anti-bounce device prevents a double impact strike on the footwear under test.



    Specifications

    1,Meet standard of EN, ANSI, BS, CSA
    2,Use friendly &easy operation
    3,Motorised lift of the striker mechanism
    4,Short delivry



    Specification:



    Drop hammer weight

    (EN)20±0.2kg, (BS, ANSI) 22.7kg

    Falling altitude

    (EN)0-1100mm

    Impact capability

    (EN)200J, (BS, ANSI)100±2J

    Impact blade ring

    (EN)3±0.1mm R, (ANSI)25.4 D

    Horsepower

    AC 1/8HP

    Volume-mainframe

    21.5*19*12.6

    Weight

    227kg

    Power

    3∮,AC380V

    Design criteria

    BS-953, 1870, EN-344, ANSI-Z41
    CSA-Z195, ISO8782
