Xenon test machine

Xenon test machine

The usage

Xenon testing machine is to test the product undergone illumination/rain/condensation/temperature/humidity/wind and any other climatic natural environment changes.
This Xenon environmental testing machine mainly for the test of non-ferrous/organic/rubber/plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.

Company Services:

All Haida employees adhere to the " Quality comes from precision, quality creates the future " business philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand consumers' needs.

The certification

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC

Specifications:

Studio Size: 950 * 950 * 800mm

Dimensions: 1300 × 1500 × 1900mm

Temperature range: RT +10 ℃~ 70 ℃

Humidity range: 90 ~ 98% RH

Temperature uniformity: ±2 ℃

Temperature fluctuation: ±0.5 ℃

Temperature control: PID self-tuning temperature control mode

Light center distance: 70mm

Samples with light center distance: 50mm

Standard Specimen size: 75 × 150 mm or 75 × 300 mm

Sink Depth Requirements: 25mm, automatic control

Effective radiation area: 900 × 210 mm

UV wavelength: UV-A wavelength range of 315-400nm; UV-B wavelength range of 280-315nm

Test time: 0 ~ 999H, adjustable, UV Gel time alternately adjustable

Blackboard Temperature: 40 ℃~ 65 ℃

Power supply: 3 ∮, AC380V/50HZ, 5KW

Weight (approximately): about 110kg

Standard Size: (inner carton) 600 * 600 * 600mm 500 * 600 * 600mm 700 * 700 * 70mm 800 * 800 * 800mm

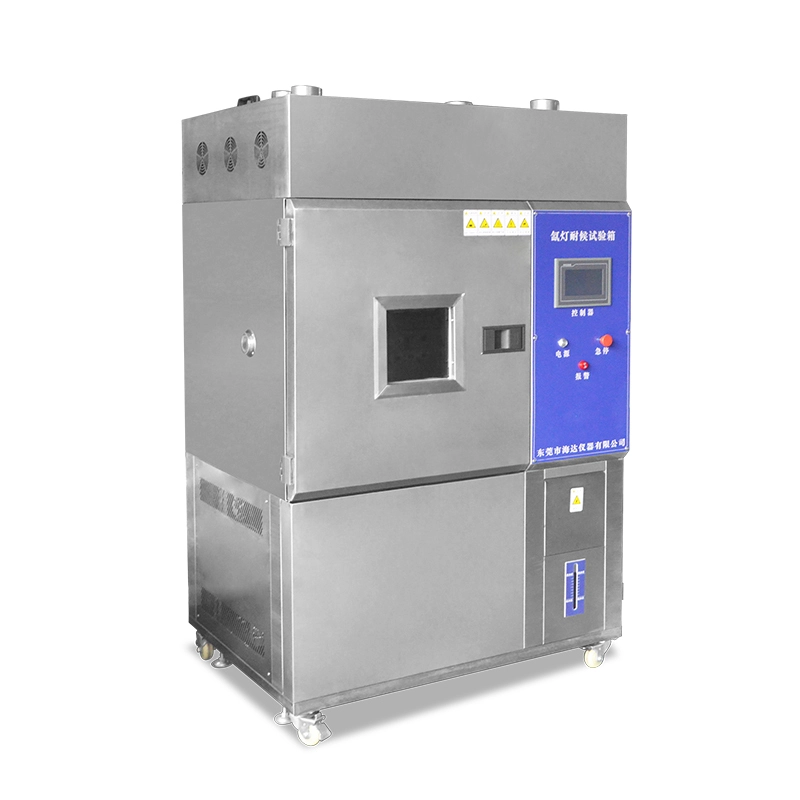

The images of this machine
