Thermal Conductivity Tester (Guarded Hot-plate Method) 1

Thermal Conductivity Tester (Guarded Hot-plate Method) 2

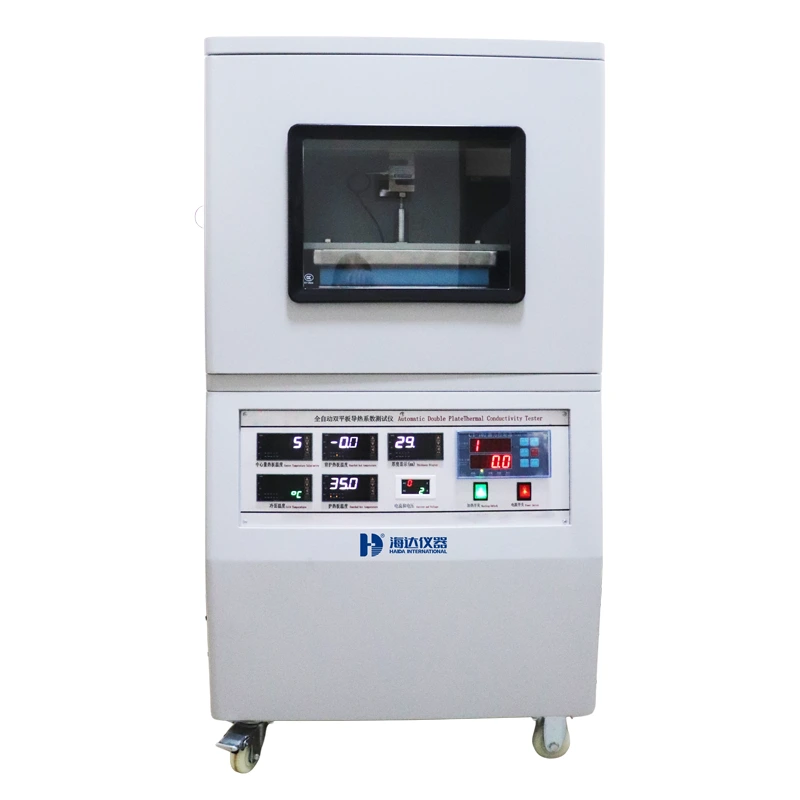

Thermal Conductivity Tester (Guarded Hot-plate Method)

Model:

60087-HD

Inquiry

Write a Review

Product Description

The Thermal Conductivity Tester (Guarded Hot-plate Method) is mainly used to test plastic, rubber, glass, fiber, benzene board, extruded plastic board, foamed concrete, hollow glass, wood board, all kinds of heat preservation materials and other homogeneous board materials, and at the same time, it can measure the thermal conductivity of various substances such as granular materials, bulk materials, soft materials.

Test Standards: ASTM C177, EN1946-2, EN 12664, EN 12667, EN 12939, GB/T10294, GB/T3399, GB/T10801.1, GB/T10801.2, GB/T3139, GB/T 17794, etc.

Product Specifications

Model	60087-HD
Thermal conductivity range	0.001~3.000 W/m.K
Measuring accuracy	≥±2%
Repeatability error	≤±1%
Sample state	Can test solid material, powder material
Measuring time	60 minutes
Hot surface temperature range	RT~150℃, resolution: 0.01℃
Cold surface temperature range	0~60 ℃, resolution: 0.01 ℃
Pressure measurement range	0~500N, resolution: 0.1 N
Sample thickness range	0~50mm, resolution 0.001mm, automatic digital thickness measurement
Specimen size	(LengthWidthThickness)300300(5-50)mm (standard configuration)
Control method	By computer and software
Machine dimension	(LWH)5504501500mm
Machine weight	Approx. 100KG
Bath dimension	(LWH)300350530mm
Bath weight	Approx. 35KG
Power	1∮ AC 220V 50W

Products Advantages

Thermal Conductivity Tester (Guarded Hot-plate Method) 4

Best Quality

We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.

Thermal Conductivity Tester (Guarded Hot-plate Method) 5

Reasonable Prices

We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.

Thermal Conductivity Tester (Guarded Hot-plate Method) 6

QC Team

We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.

High-End Look

When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

Product Characteristics

Fast and accurate: test can be completed in 10-160S

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

Non-destructive testing: samples are undamaged and can be reused.

Simple sample preparation: no special requirements for sample size.

Wide range of test objects: can test lump solids, granular solids, liquids, powders, colloids, pastes

High flexibility: independent sample holder, detachable probe, flexible testing

Friendly user interface, easy to operate: LCD touch screen display, convenient operation, easy to understand.

Product Details

Nothing says class, sophistication, and smooth comfort quite like velvet, It combines thick cushioning with tufted velvet, sleek arms, tapered wooden legs, and a vintage look that takes you back to the 1950s.

Upholstery Material

With a variety of colors to match your décor, this sofa can fit perfectly with a contemporary look or more rustic-looking living space.

Reversible Cushions

The split-back design seating can be independently lowered into a lounging position so you can sit up to watch your favorite movie.

Leg Material Details

Sofa comes with soft padding under all four feet to make it easy to move around and ensure your floors are never scuffed or scratched.

MATERIAL INTRODUCTION

Cozy Space With Blue Sofa

This armchair brings a boxy silhouette to your living space. It's crafted with a kiln-driedengineered wood frame and sits on engineered wood legs in a light brown finish. This chair is wrapped in 100% polyester, foam-filled upholstery in a solid hue. It features square arms and a high, tufted back for a tailored touch. Flared legs offer a mid-century modern feel, complementing modern and contemporary decor styles alike. To care for this accent chair, simply wipe it with a damp washcloth and a bit of dishwashing soap.

Product Application

Sensationally stunning and exquisitely engineered, our seating options, whether guestroom seating, breakfast area seating or lobby seating are perfectly crafted to be admired from all angles. All of our seating products offer sophisticated comfort and support, delivering a perfect perch for your hotel guests.
