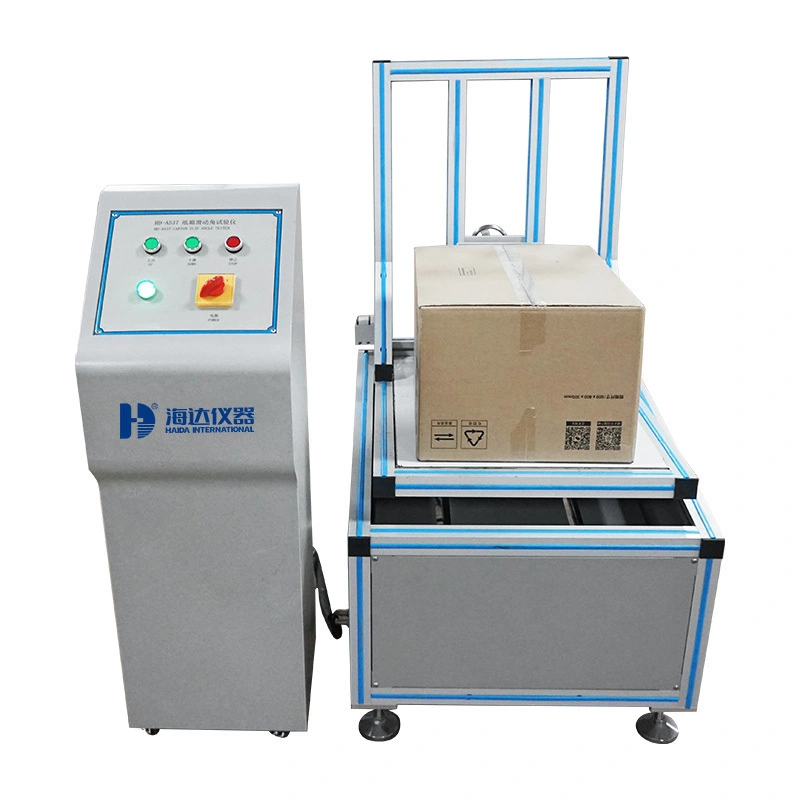

Carton Sliding Angle Tester

Introduction

Beer box sliding angle test machine manufacturers to test the carton skid resistance performance .  Beer box or other packaging box stacking and transportation ,  if the surface friction coefficient is too small ,  easy to cause theslide ,  through the test ,  to improve the packing slip resistance performance .  In order to defects of the corrugated boxes and fiber carton for online work efficiency / influence process loss to a minimum; determine the packing materialsonline running related situation ,  but the specialized research and development of a special instrument for measuring various carton friction angle .  Special checkbeverage packaging box sliding performance of beer box ,  very useful .

Some characteristics of carton sliding angle measuring instrument :  high control precision ,  the use of advanced single screw rod guide pillar mechanical structure , motor control ,  angle digital display .

Design standards :  DIN 53119-2-1997

The main feature

Haida international instruments is a professional R & D and manufacturing pull test machine ,  constant temperature and humidity box ,  carton compressionmachine detection instrument China first production base .  Haida beer box slidingangle tester won the national utility model patent certificate and relevant international certification ,  9 years of professional manufacturing experience ,  at present more than 5000 customer cases ,  0 . 9% repair rate ,  7*24 hours technicalsupport .

Technical parameters

Domestic 0 . 4KW servo motor

Angle display :  LCD digital display ,

Accuracy :  ± 0 . 1 °

Test :  0-40 ° angle

Test speed :  2 ° / s .

Drive mode :  Electric

The platform area :  600 * 500mm maximum load :  50KG

Maintain

1 cleaning :  always beer box sliding angle test machine cleaning ,  before and after each use cotton cloth wiping machine application ,  in order to keep clean .

2 :  a week in the machine surface rust metal parts of spraying a rust preventive oil ( injection 2 hours after the wipe )  .

3 oil :  regular monthly in machine transmission parts  ( such as screw )  lubricating ( use ordinary lubricating oil )  .

4 maintenance :  regular inspection of the control panel button is normal .
