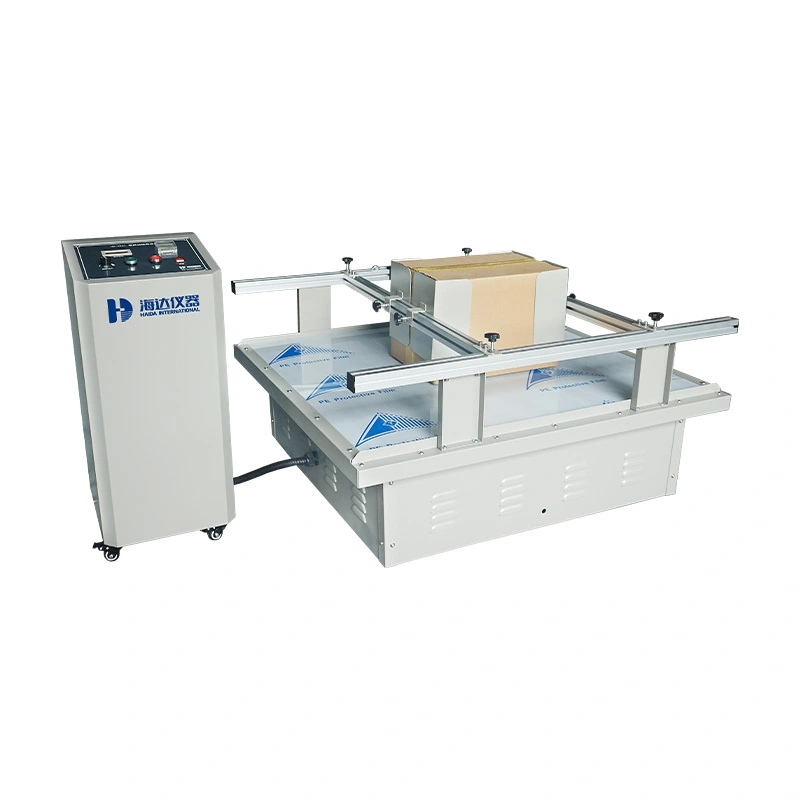

    ISTA Transportation Vibration Tester


    Transportation Vibration Tester 6
    Applications:

    Transportation Vibration Tester is to simulate the goods in transit, encounter different road conditions such as bumpy, uphill, downhill, cornering, etc., products in the car produce the collision between goods and goods or goods and car and the extrusion between goods.

    With a the packaging vibration test, you can ensure the packaging comply to international requirement (like ISTA) and avoid damage during transit.


    Transportation Vibration Tester 7

    Electrical Appliances

    Transportation Vibration Tester 8

    Home Appliances

    Transportation Vibration Tester 9

    Automobiles

    Transportation Vibration Tester 10

    Aviation




    Packaging Dimensions:

    Packaging Dimensions: (WxDxH) 1300*1240*980mm

    Power supply source: Three-phase,220V±10%, 50/60Hz

    Gross Weight: 270kg



    Feature:


    1. Cost friendly, which is only 10% of the same products in the USA;

    2. Adopts synchronous mute belt drive for low noisy;

    3. Rail-type specimen holder, easy operation and safety;

    4. Machine base adopts heavy style channel with vibration attenuation pad, convenient, stable and no need to install land screw;

    5. AC motor adjusts speed for smooth operation and large load ability;


    Specifications:

    Max. Test Load

    1KN

    Frequency Range

    60-300rpm

    Amplitude Range

    25.4mm (1 inch)

    Simulation Speed

    25~40km/h

    Vibration Mode

    Roundtrip

    Work Table Size

    1000*1200 mm ( L*W, can be customized )

    Outside dimension   ( L*W*H )

    1255*1070*660mm

    Speed Mode

    DC converter or AC Frequency Control

    Power Capacity

    1 HP

    Weight

    150kg

    Power

    220V, 50 Hz

    Speed Mode

    DC converter or AC Frequency Control

    Environmental Conditions

    Temperature: 5~40°C;   Related Humidity <85%




    Operation Principle:

    Transportation Vibration Tester 11

    Please watch VCR:



    Structure


    Transportation Vibration Tester 12
    Touch Screen Controller
    Transportation Vibration Tester 13
    Sensor
    Transportation Vibration Tester 14
    AC Motor
